FLIR

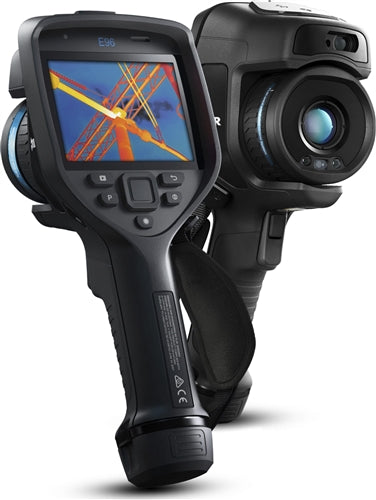

FLIR E96 Advanced Thermal Imager, 640x480, 24° Lens
$15,500.00
SKU: FLIR-E96-24
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Safely survey high-voltage and hazardous targets while quickly diagnosing electrical and mechanical failures with the 640 x 480 pixel thermal camera. It features a laser distance meter and a 24° lens, offering coverage of near and distant targets. Additionally, it comes with FLIR's Thermal Studio Starter.
Innovative pistol-grip camera with 640 x 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Outstanding thermal imagery:
The 640 x 480 thermal resolution plus UltraMaxand MSX image enhancement ensure the camera produces the most vibrant, easiest-to-interpret images in its class.
Intelligent autocal optics:
Interchangeable, auto-calibrating lenses - from telephoto to wide-angle - allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
FEATURES:
Innovative pistol-grip camera with 640 x 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.
Outstanding thermal imagery:
The 640 x 480 thermal resolution plus UltraMaxand MSX image enhancement ensure the camera produces the most vibrant, easiest-to-interpret images in its class.
Intelligent autocal optics:
Interchangeable, auto-calibrating lenses - from telephoto to wide-angle - allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
FEATURES:
- Detector Size: 640 x 480 Sensor
- Thermal Sensitivity: 40 mK (NETD)
- Temperature Range Max: 2732 F
- Temperature Range Min: -4 F
- Image Frequency: 30 Hz
- Field of View: 24x18 Degrees
FLIR E96-24 (90202-0101) Specifications
| IR Resolution | 640 x 480 pixels |
| Resolution with UltraMax Enhancement | 1.2 megapixels |
| MSX Image Enhancement | Yes: details from visual camera add depth and perspective |
| Built-in Visual Camera | 5 MP, fixed focus, with built-in LED light |
| Thermal Sensitivity | <30 mK at 86°F (30°C) |
| Temperature Range | -4 to 248°F (-20 to 120°C) 32 to 1202°F (0 to 650°C) 572 to 2732°F (300 to 1500°C) |
| Accuracy | ±3.6°F (±2°C) or ±2% of the reading |
| Focus Modes | Continuous LDM, one-shot LDM, one-shot contrast, manual |
| Digital Zoom | 1 to 8x continuous |
| Measurement Tools | 3 spot meters in live mode, 3 area meters in live mode |
| Measurement Presets | None, center spot, hot spot, cold spot, User Presets 1 and 2 |
| Lens | 24° |
| Lens Identification | Automatic (FLIR AutoCal) |
| On-Camera Routing Software | FLIR Inspection Route enabled |
| On-Camera Report Building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR Software Integration | FLIR Thermal Studio Starter, FLIR Thermal Studio (optional), FLIR Thermal Studio Pro (optional), FLIR Research Studio (optional) |
| Communication Modes | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
| Display | 640 x 480 pixels (VGA) |
| Drop Testing | 6.6' (2 m) |
| Battery Operation Time | >2.5 hours, typical use |
| Dimensions | 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm) |
| Weight | 2.2 lbs (0.99 kg) |
Contact us at (214) 238-0493 for full specifications.
