Monarch Instrument

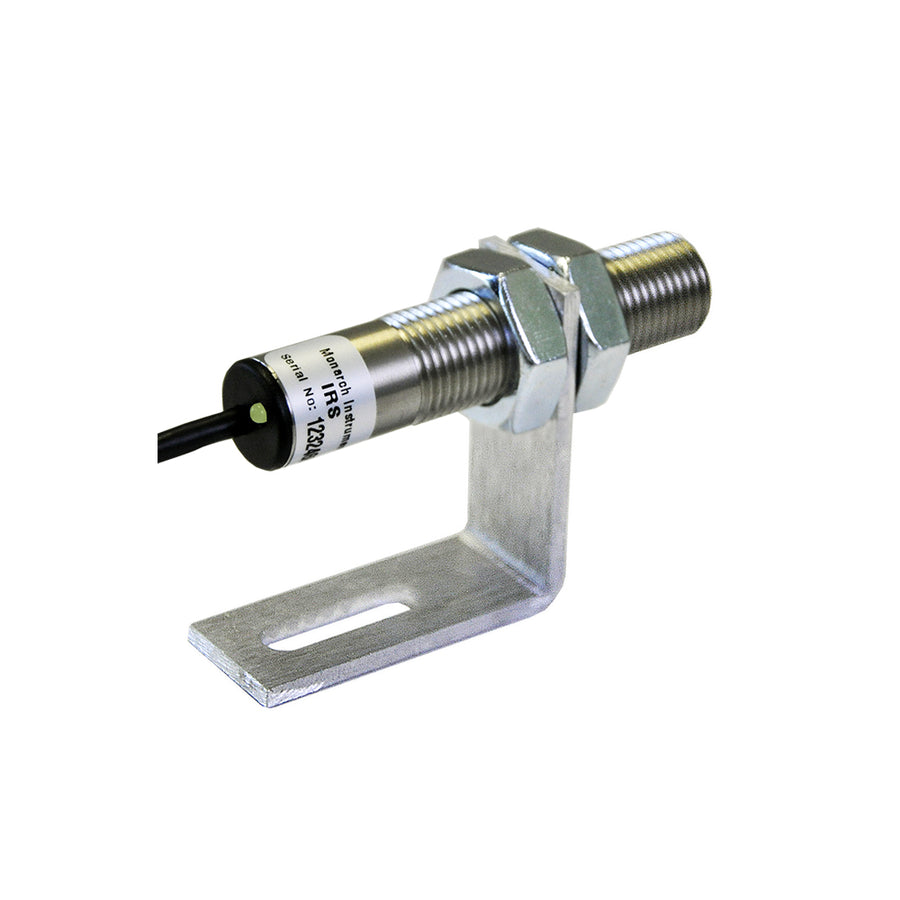

IRS Infrared Sensor with 8 ft. Cable
$271.00
SKU: 6180-021
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Both the IRS-P and IRS-W Infrared Optical Sensors are proven to be reliable high-speed sensors with a range of 1-1,000,000 RPM! With a working range of 12 mm, these sensors are ideal for very high-speed equipment or an application providing contrasting light and dark surfaces.
Specifications
| Speed Range | 1 – 1,000,000 RPM |
|---|---|
| Illumination | Infrared LED (not visible) |
| On-Target Indicator | Red/green LED on the wire end cap |
| Target | Contrasting colors or beam interrupt |
| Operating Range | Up to 0.5 in. [12.7 mm] from target |
| Power Requirement | 3.3 – 15 Vdc @ 40 mA |
| Output Signal | Negative pulse input voltage (+V) to 0 |
| Operating Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidity | Maximum relative humidity 80% for temperature up to 88 °F (31 °C); decreasing linearity to 50% relative humidity at 104 °F (40 °C), humidity must be non-condensing |
| Connection | 1/8 in. [3.5 mm] male stereo plug (IRS-P)
Tinned wires (IRS-W) |
| Cable Length – Standard | 8 ft. [2.4 m] |
| Material | 303 stainless steel tube supplied with mounting bracket and two M16 jam nuts |
| Dimensions | Threaded tube: 2.90 in. x 0.62 in. diameter [M16 x 1.5 x 74 mm] long |
Specifications are subject to change without notice.
