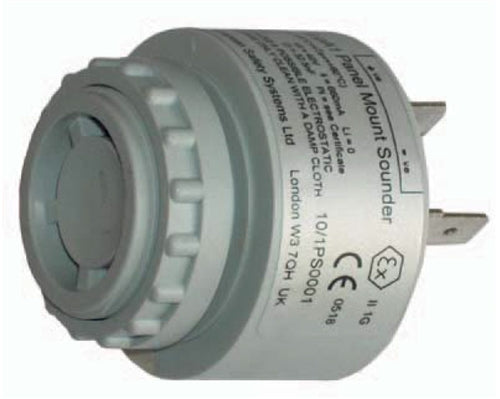

IS-pA1 Intrinsically Safe Panel Mount Sounder
$562.00
SKU: E2S-IS-pA1
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
The IS-pA1 is a compact, panel mount 90dB(A) intrinsically safe alarm buzzer.
Producing a high frequency continuous tone, the IS-pA1
can be pulsed to produce different sounds. Utilising the supplied
threaded lock nut the IS-pA1 mounts into a 28mm hole - ideal for
applications in control panels where a fault indication or other process
alarm is required.
Specification
| Nominal output: | 89.6dB(A) @ 1m +/- 3dB [80.6dB(A) @ 10ft/3m] |
| No. of tones: | 1 - continuous tone |
| Frequency: | 2600Hz |
| Voltage: | 16-28vdc via Zener barrier or galvanic isolator |
| Current: | 12mA typical when powered from 24v supply Zener barrier |
| Ingress protection: | IP66 |
| Rating: | Continuous |
| Housing material: | UL94V0 & 5VA FR ABS |
| Housing colour: | RAL7038 Grey |
| Mounting: | Panel mount - 28.5mm |
| Terminals: | Spade terminals |
| Operating temp: | -40° to +60°C [-40 to +140°F] |
| Storage temp: | -40° to +70°C [-40 to +158°F] |
| Relative humidity: | 90% at 20°C [68°F] |
Part Codes
| ATEX / IECEx | ||
| IS-pA1-G | ||
| II 1G Ex ia IIB T6 Ga (-30°C <=Ta<= +60°C) | ||
| May be powered from any certified Zener barrier or galvanic isolator whose output parameters do not exceed: | ||
| Uo : 40VDC | Io : 660mA | Po : 1.3W (T1-T4) |
| Po : 0.6W (T5) | ||
| Po : 0.3W (T6) | ||
Contact us at (214) 238-0493 for full specifications.
