L56SS Laser Bar Feeder Alignment System

Our Solution:

• An instantaneous set-up using Self-Centering Laser Tools is 95% faster
• The laser beam is straight to +/-.010′ @ 10 feet
• Works with all sizes of chucks and collets – Accommodates bores as small as 1/32″ (1mm) in diameter
• Tool is compact and portable
• Magnetic Spindle Adapter, AP56 – Minimizes the need for different diameter extension sleeves
• Reduces operating cost by saving setup time
• Significantly increases machine availability by 95%

Poorly aligned bar feeders require more energy to achieve the same results – The L56SS Alignment System is the perfect tool for:

• Reduction of maintenance cost, energy consumption and vibration
• Unplanned downtime so production is optimized
• Fewer emergency repairs

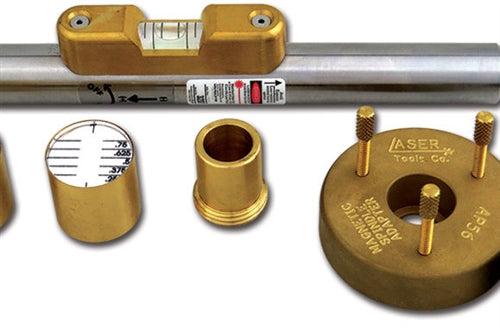

Model L56SS Bar Feeder Alignment System Includes:

• L56SS Stainless Steel L56 Alignment Laser
• 1 DT56C Clear Target with 1/8” Graduations
• 1 DT56T Translucent Target with 1/8” Graduations
• AP56S ¾” Resizing Sleeve for Target
• AP56 Magnetic Spindle Adapter
• AP15 Aperture Pack with 1/16”, 3/32” and 1/8” apertures
• 2—4-40 x 1/8” Brass Set Screws
• AP43 Foam Filled Carrying Case

Specifications:

• Power: 2-“AAA” size Alkaline Batteries – Over 12 hours of continuous use
• Dimension: 6 1/2″ L (16.5cm) x 3/4″ Dia. (1.9cm)
• Laser Beam: 635nm @ <5mW, Class IIIa Beam
• Beam Size: 1/16″ @10′ with removable aperture
• Beam Divergence: .4mrad
• Level Vial: 5 minutes of arc
• Alignment: Concentric to Long Axis +/- 1/8″ @100 feet
• Targets: 2 targets (1 clear and 1 white) – 1″ L x 1″ Diam. with grid lines every 1/8″
• “O” Ring Seal: Waterproof to 1m for 10 seconds, IP67
