Electromatic

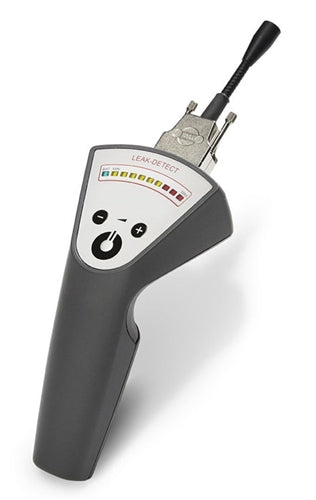

LDT Ultrasonic Leak Detector
$1,195.00
SKU: ELE-LDT-1
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
The LDT ultrasonic leak detector is designed for pinpointing air leakages, especially in noisy locations, where the leak is not audible by ear. It is also useful for locating leaks in compressed-air systems where air escapes at frequency which humans cannot hear. The sound, which is created by air escaping from a leak, is detected by an ultrasonic receiver and converted to an audible sound and is displayed with an optical indication on the instrument.
The LDT can be used to locate leaks in
The LDT can be used to locate leaks in
- pneumatic systems
- vacuum equipment
- valves and fittings
- steam pipes
- oxygen sockets in hospitals
- air conditioning systems in automotive vehicles
- Door and window seals of cars, pressurized containers, ships, trucks, buses, trains, airplanes etc.
- Detect leaks larger than 0.1 mm ⌀
- Optional Parabolic Reflector for long-range sensing of 5-20 meters (15 - 60 ft)
- Fast and Easy to use
- Reduces running costs and consumption of compressed air
- Increases the reliability of pneumatic systems
- Optional Parabolic Reflector (p/n 55006H) For detecting leaks in the range 5-20 meters (15 - 60 ft), supplied with Laser Pointer to identify source of leak
- For leakages with more than Ø 0.1 mm. Pressure of 1/14.5psi bar is recommended. For leakages with a diameter smaller than 0.1 mm, a higher pressure is recommended (e. g. 8 bar/110 psi)
- Attach probe to LDT.
- Plug in and put on the headphones.
- Press power button.
- Adjust volume until you hear some hissing in the head phones. The first yellow LED will light up.
- Direct the sensor to the area of equipment that needs to be checked. These areas are normally tubes, fittings and screws. For longer distances, the laserpointer inside the parabolic dish is a helpful direction finder.
- A leak has been detected if the audio signal increases and the LED signal changes into the red area.
55001H - Long Gooseneck Probe, 260mm
55003H - Ultrasonic Transmitter for leakage checks inside sealed compartments
55004H - 9V rechargeable battery with charger
55005H - Standard Gooseneck Probe, 110mm
55006H - Parabolic Reflector/Dish with laser pointer
The LDT is supplied as a complete kit with 110mm probe, pin-point detection probe, headphones and calibration certificate in a fitted carrying case.
| Power supply | 9V battery |
| Display | LED Indicator |
| Dimensions | 180 x 90 x 60 mm |
| Weight | 250g |
| Protection class | IP 67 |
| Housing material | ABS with electromagnetic shield |
| Operating temperature | 0-55 C |
| Approval mark | CE ( tested against electromagnetic disturbances and emissions) |
Contact us at (214) 238-0493 for full specifications.
