Pepperl + Fuchs

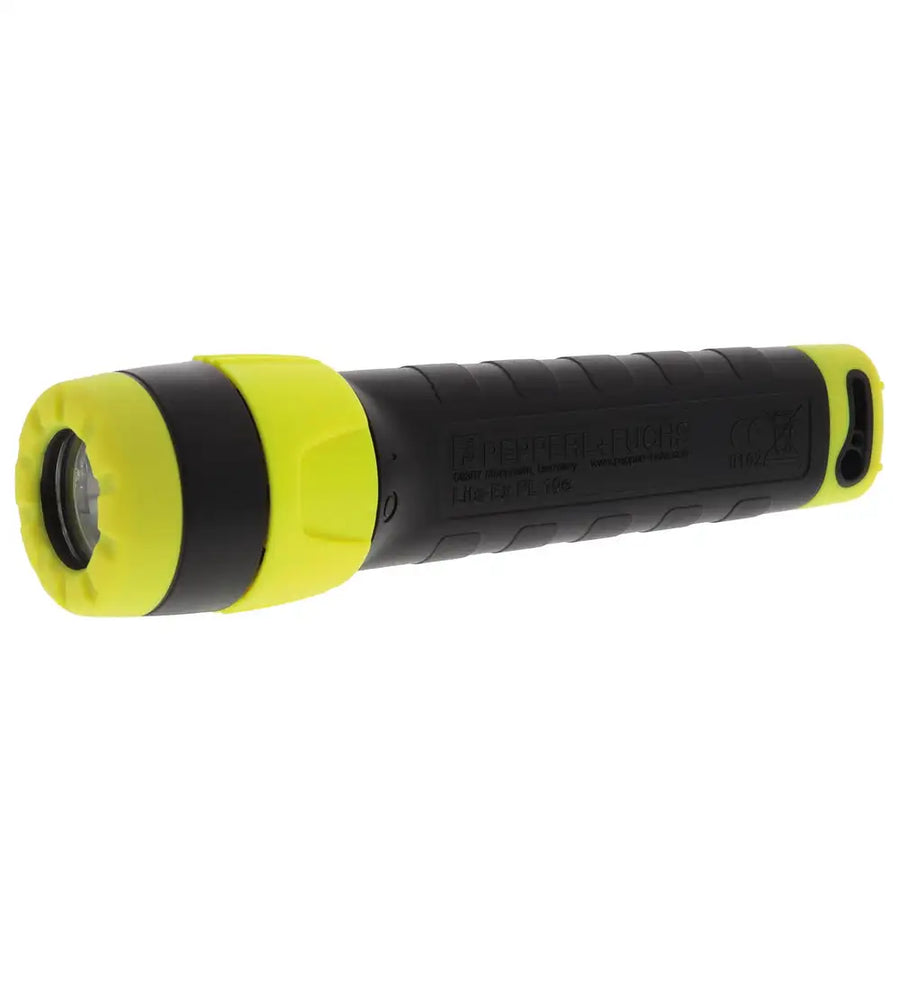

Lite-Ex® PL 10 Intrinsically Safe Flashlight
$155.53
SKU: 70138467
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The Lite-Ex® PL 10 is the result of consistent development of the successful Lite-Ex® PL 30. It is ultralight, powerful and suitable for daily use. Despite its compact dimensions the Lite-Ex® PL 10 is equipped with all of the features of its larger sibling. It comes with the tried and tested, wear-resistant ring switch and a high performance LED. The sophisticated optics ensures even illumination.
Approvals:
Approvals:- II 1G Ex ia op is IIC T4 Ga
- II 1D Ex ia IIIC T130°C Da
Features
- Zone 0 / 20 certified
- Extremely light and compact; Weight: Just 120 g including batteries
- Simple to use
- High performance LED; Luminosity: 3,000 lx at a distance of 1 m
- Operating time (approx.): 55 hours
- Ring switch
- Scratch-resistant: Coated protective disc
- Rugged polyamide housing
- Removable belt clip
- Pressure control valve
Technical data
| Ambient temperature | -20 °C … +50 °C (-4 °F … +122 °F) |
| Storage temperature | -30 °C … +60 °C (-22 °F … +140 °F) without battery |
| Power supply | 3 x LR03 / AAA (type-tested) |
| Bulb | High performance LED |
| Luminosity | 3,000 lux (at a distance of 1 m) |
| Luminous flux (approx.) | 64 lumens |
| Operating time | approx. 55 hours |
| Dimensions | 147 mm x 36 mm x 36 mm (~ 5.8" x 1.4" x 1.4") |
| Weight | approx. 120 g (~ 4.2 oz) with batteries |
| Protection rating | IP65, IP67 |
| ESD-protection | Anti-static housing |
| CE designation | CE0102 |
Scope of delivery
- Lite-Ex® PL 10
- Belt clip
- Wrist strap
- Instruction manual
- Batteries
Contact us at (214) 238-0493 for full specifications.
