Pepperl + Fuchs
Magnet-Ex 12 Intrinsically Safe Magnet Probe
$279.13
$303.52
SKU: 70125482
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

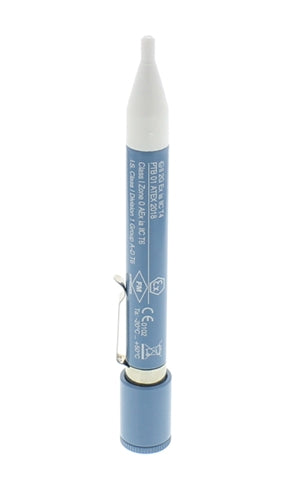

The Magnet-Ex 12 is an intrinsically safe pencil sized magnet probe, designed to detect magnetic fields in Ex-hazardous areas.
Within seconds it is possible to detect whether or not a solenoid valve is electrically activated. Connection to electronic circuitry or opening of terminal boxes is rendered unnecessary.The highly sensitive probe point of the Magnet-Ex 12 only needs to be brought near the coil of a solenoid valve, if the probe shows a red light this indicates that the magnet is activated.
Specifications:
Certifications:
Within seconds it is possible to detect whether or not a solenoid valve is electrically activated. Connection to electronic circuitry or opening of terminal boxes is rendered unnecessary.The highly sensitive probe point of the Magnet-Ex 12 only needs to be brought near the coil of a solenoid valve, if the probe shows a red light this indicates that the magnet is activated.
The Magnet-Ex 12 comes with an integral test magnet that is securely fitted in such a way that it cannot be easily lost. Using this magnet, tests can be carried out to establish the working state of both unit and batteries.
Features
- No contact with test object required
- Resistent to dirt
- Optical indication
- Highly sensitive
Technical Data
- IP Protection rating IP54
- There is no contact with the test object required
- Weighs about 60 g (~ 2.1 oz) with batteries
Specifications:
| Magnetic field types: | alternating, direct and permanent fields |
| Detection: | no contact with test object required |
| Ambient temperature: | -20 °C to +50 °C (-4 °F to +122 °F) |
| Storage temperature: | -40 °C to +60 °C (-40 °F to +140 °F) |
| Power supply: | 2x LR03 according to IEC (type approved) |
| Dimension: | 150 mm x 18 mm (L x ø) (~ 5.9" x 0.7") |
| Weight: | approx. 60 g (~ 2.1 oz) with batteries |
| Protection rating: |
IP54 |
Certifications:
 |
|
Contact us at (214) 238-0493 for full specifications.
