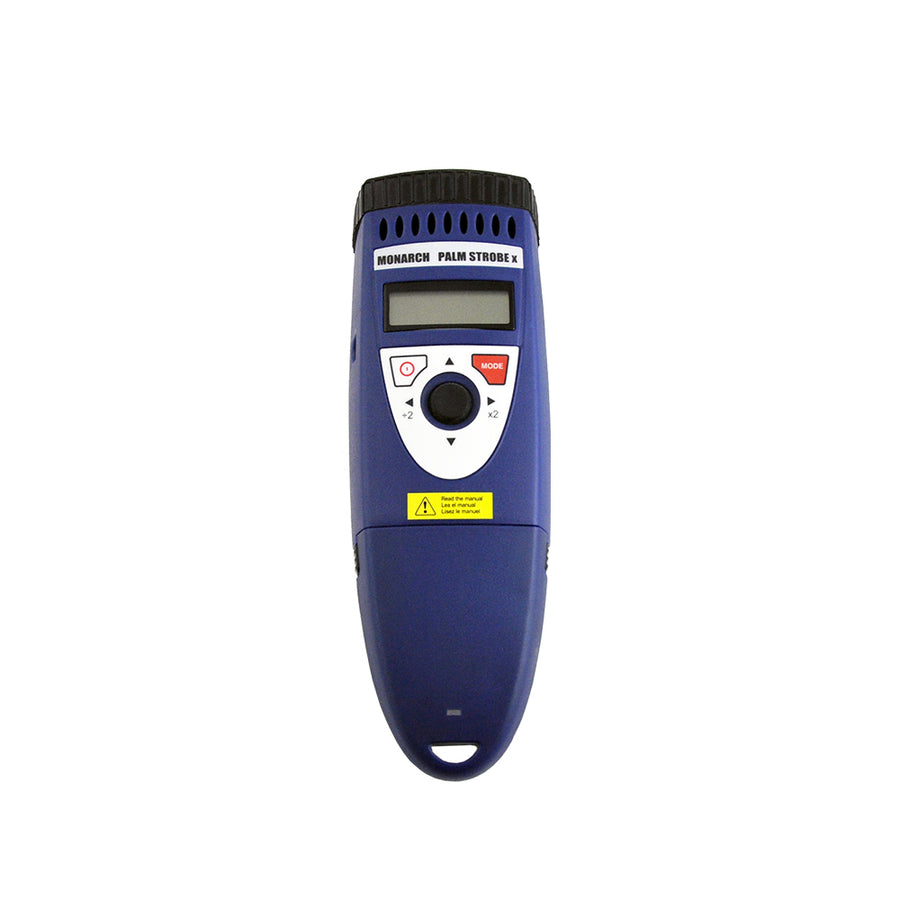

Monarch 6205 Palm Strobe X Pocket-Size Portable Stroboscope

Monarch Instrument

Monarch 6205 Palm Strobe X Pocket-Size Portable Stroboscope

$745.00

SKU: MON-6205-050

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

The PALM STROBE x Stroboscope is a compact, handheld device with excellent brightness, exceptional features, and extra-long battery life. A unique one-touch joystick-type button makes for single-handed operation. NIST Traceable Certificate included.

Palm Strobe X 115/230 Includes:

Strobe, Battery, PSC-1U 115/230 Vac Re-Charger

Palm Strobe X Pak 115/230 Includes:
Strobe, Battery, PSC-1U 115/230 Vac Re-Charger, Spare Battery, Holster

Palm Strobe X Kit 115/230 Includes:
Strobe, Battery, PSC-1U 115/230 Vac Re-Charger, Spare Lamps, Case

Palm Strobe X Deluxe Kit 115/230 Includes:
Strobe, Battery, PSC-1U 115/230 Vac Re-Charger, Spare Lamps, Spare Battery, Holster, Case

Specifications

Display	6 digit alphanumeric backlit LCD
Light Power	7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
Flash Duration	10-30 µseconds typical
Run Time	2 hours typical at 1800 FPM, > 1 hour typical @ 6000 FPM
Adjustment	Four Quadrant tuner button with blinking decade select for flash rate up and down, x2 and /2
Output Pulse	250 µsecond positive pulse, 5 Vdc typical
Power	Removable 6V Rechargeable Battery Pack with integral charge control electronics
Weight	1.2 lbs (0.55 g) including battery
Internal Mode	Flash Range: 100 - 12,500 FPM
Resolution	± 0.1 FPM
Accuracy	± 0.5 FPM or ± 0.01% of reading
Update Rate	Instantaneous

External Mode

Range and Display	0 - 14,000 FPM
Update Rate	1 second typical
FPM Accuracy	± 0.2 FPM
Trigger to Flash Delay	< 5 µseconds
External Input	0 - volt TTL compatible (+12V pk max) 20 µseconds min pulse width, Positive edge triggered

Tachometer Mode

Range	10 - 250,000 RPM
Accuracy	± 0.01% or 0.1 RPM
Update Rate	1 second typical
External Input	0 to 5 volt TTL compatible (+ 12V pk max) 20 µseconds min pulse width. Positive edge triggered
