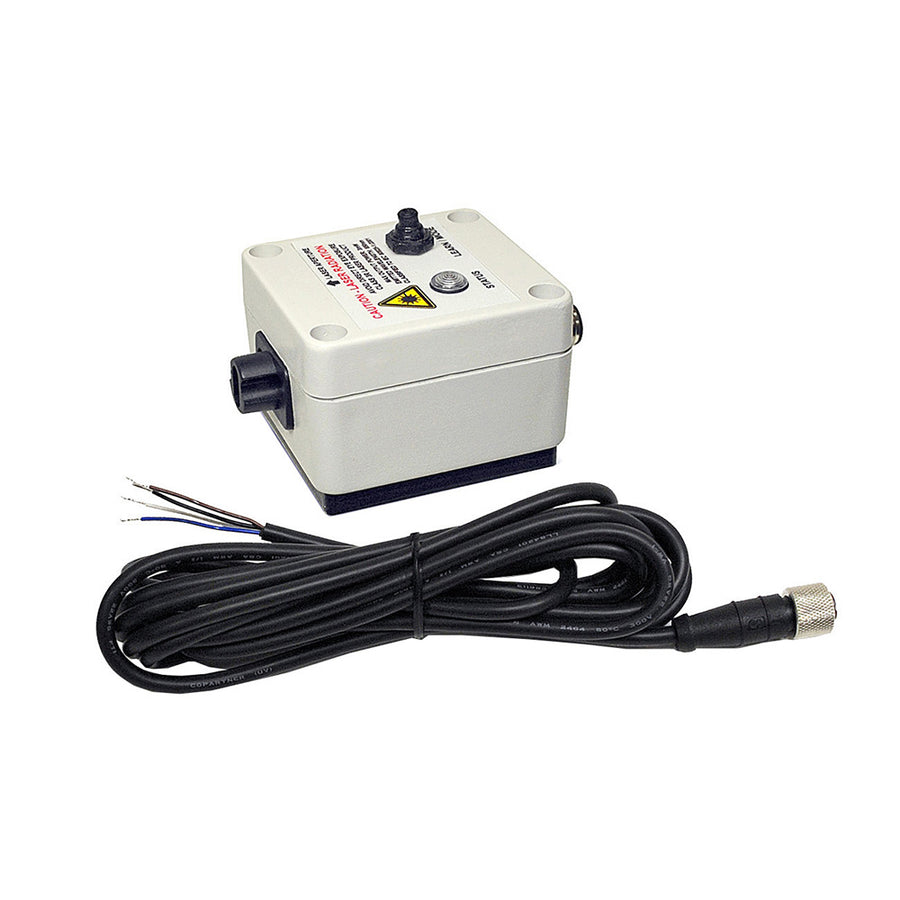

Monarch Instrument Compact Smart Laser Sensor (CSLS)

The CSLS Compact Smart Laser Sensor is a self-contained optical sensor intended to be used to make non-contact speed measurements from rotating targets at distances up to 65 feet [19.8 m]. The sensor is IP64 rated and is suitable for use in dusty damp environments.

Detailed Description

The Compact Smart Laser Sensor (CSLS) is a self-contained optical sensor intended to be used to make noncontact speed measurements from rotating targets at distances up to 65 feet (19.8 m). The sensor has both digital pulse and analog outputs to provide non-contact reference points to balancing equipment or signals to a vibration analyzer. The sensor will track surface irregularities on rotating shafts and provide pulse outputs from reflective tape, contrasting colors and keyways.

CSLS-NIST (6180-038-CAL) includes NIST Traceable Certificate of Calibration.

Applications

• Speed measurement in semi damp/dusty environments
• Use in conjunction with FFT analyzers to determine speed without a reference mark

Features

• Rugged, compact, and lightweight
• Single pushbutton operation
• 1-500,000 RPM range
• TTL 0-3.0 V pulse output
• IP64 enclosure
• Analog output to provide reference points for balancing or vibration analyzers
• Measure rotating targets up to 65 feet away
