Monarch Instrument Examiner 1000 Vibration Meter Kit

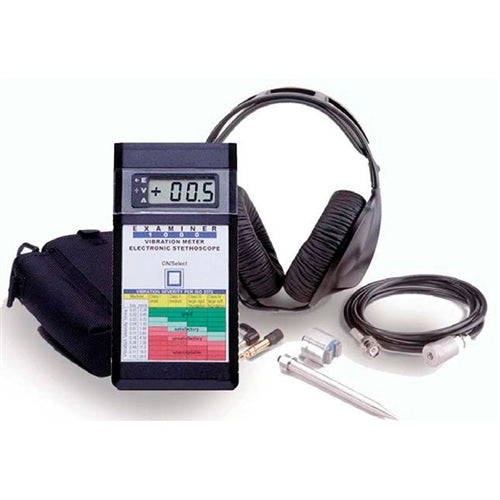

The EXAMINER 1000 Vibration Meter Kit includes the 1000 vibration meter and electronic stethoscope, display unit with electronics including AA batteries, accelerometer and coiled cable, magnetic base, stinger probe, stereo headphones, and carrying case.
NIST Traceable Certificate is available with PN: 6400-011-CAL.
Detailed Description
The EXAMINER 1000 Vibration Meter Kit centers around the EXAMINER 1000, a meter designed for ease of use in condition-based maintenance programs. It is the ideal tool to begin a predictive maintenance program or to add to an existing world-class maintenance program with FFT data collectors and analysis software. This product is available with NIST Traceable Certificate.
The EXAMINER 1000 measures vibration in:
- Acceleration
- Velocity
- Acceleration Enveloping
Features
- Kit includes EXAMINER 1000 Vibration Meter and electronic stethoscope, batteries, accelerometer and coiled cable, magnetic base, stinger probe, stereo headphones, and carry case
- One-button operation – no training required for use but interactive vibration training is available
- Front Panel Severity Chart on the front
- Multiparameter Readings – power to trend defects and eliminate unplanned failures
- Stethoscope – hear what you see in the digital display! The proven troubleshooting technique of listening!
- Reliable, accurate, and affordable
Vibration is considered the best operating parameter to judge dynamic conditions such as:
- Balance
- Bearing Defects
- Lubrication
The EXAMINER 1000 is a handheld, battery-powered overall vibration meter and electronic stethoscope. It is the perfect tool for trending overall vibration readings in process equipment such as:
- Rolling Element Bearing
- Motors AC/DC
- Pumps
- Gearboxes
- Compressors
- Fans
Specifications
| Vibration Sensor | Piezoelectric accelerometer 100 mV/g with magnetic base, probe, and 5 ft. cable to BNC |
|---|---|
| Display | LCD 3.5 digits – Indicators: Measurement, Hold, Low Battery, Units of Measure |
| Measurement Range | Acceleration: 0.01-19.99 g (RMS)
Velocity: 0.01-19.99 in/sec, 0.1-199.9 mm/sec (RMS) Envelope: 0.01-19.99 gE (peak) |
| Frequency Range | Overall: 10 Hz – 10 kHz
Envelope: 0.5 kHz – 10 kHz |
| Output | Sensor excitation: 18 Vdc @ 2 mA (BNC)Audio output: 3.5 mm mini plug; 250 mW into 8 ohms, 150 mW into 32 ohms; adjustable volume control with off position |
| Power | Two (2) AA cells |
| Operating Time | 20 hours continuous without headphones |
| Weight | Complete kit: 2.85 lbs. [130 kg] |
| Dimensions | 6.3 x 3.3 x 1.25 in. / 152 x 83 x32 mm |
| Operating Conditions | -14 °F to 122 °F / -10 °C to 50 °C |
Specifications are subject to change without notice.
