Monarch Instrument Magnetic Sensors
1-99,999 RPM! The Magnetic Sensors are self-powered gear sensors, the M-190W and MT-190P are very popular magnetic sensors commonly used with 60-tooth 20 pitch gears.
The MT-190 Magnetic Trigger Amplifier Module enhances the performance of the MT-190W Magnetic Sensor, extending the operating gap.
For more details, see Detailed Description below.
Detailed Description

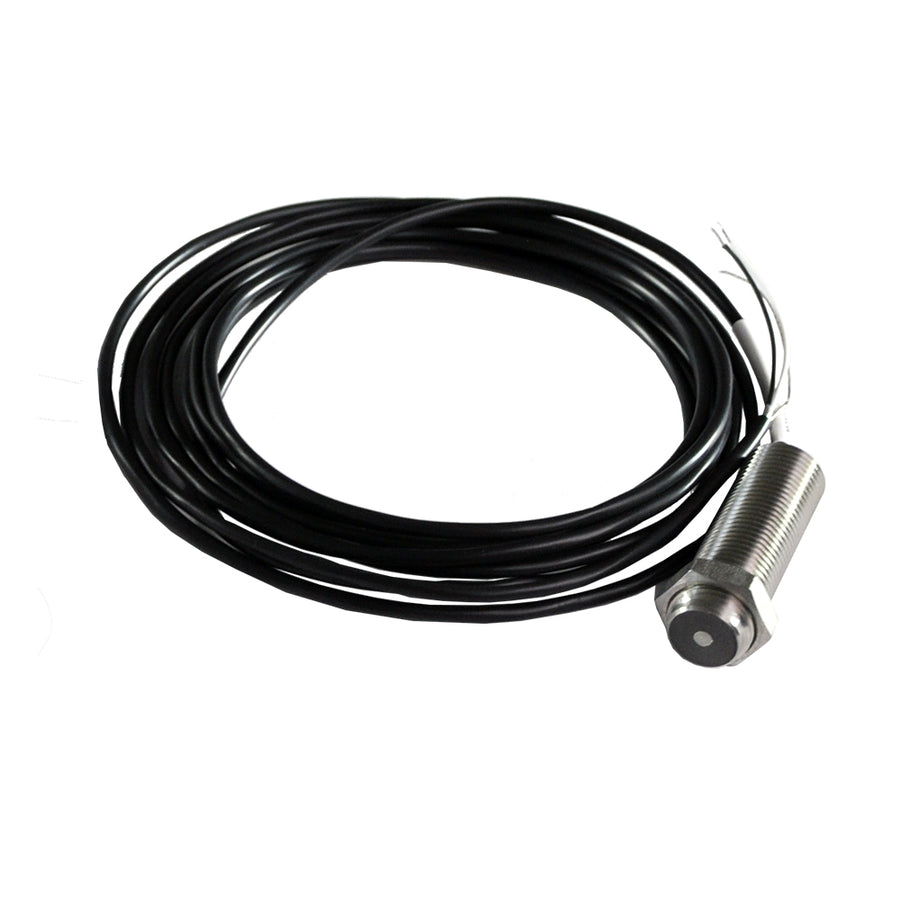

M-190W
1-99,999 RPM. These self-powered gear sensors, the M-190W Magnetic Sensor and M-190P Magnetic Sensor are very popular and commonly used with 60-tooth 20 pitch gears. They mount with 0.005 in. [0.127 mm] of a 0.1 in. [2.5 mm] target and require no power from our display modules as they self-generate an AC signal.
MT-190W and MT-190P
1-99,999 RPM. Same as the M-190 Magnetic Sensors but with enhanced performance from the amplifier, which extends the operating gap to 0.25 in. [6.35 mm] from the target. Frequently used on gears, the MT-190P and MT-190W provide a 3.3 to 24 Vdc TTL output signal. (The MT-190W is compatible with DataChart™ DC1250.)
Specifications
| Speed Range | 1-99,999 RPM |
|---|---|
| Operating Distance | 0.005″ [0.127 mm] gap w/ 0.1″ target [2.5 mm] min. |
| Operating Temperature | -100 °F to 250 °F (-73 °C to 120 °C) |
| Power Requirement | None (self-generating) |
| Output Signal | 190 V peak-to-peak |
| Min. Target Size | 0.106 in. [2.692 mm] |
| Pole Type | Flush pole, Ø.130 in. [3.3 mm] |
| Standard Cable | 10 ft. [3 m] |
| Dimensions (L x dia.) | 2 in. x 0.625 in. [51 x 16 mm] |
Specifications are subject to change without notice.
| Speed Range | 1-99,999 RPM |
|---|---|
| Operating Distance | 0.25″ [6.35 mm] gap w/ 0.1″ target [2.5 mm] min. |
| Operating Temperature | 20 °F to 160 °F (-6 °C to 70 °C) |
| Power Requirement | 3.3 to 24 Vdc, 15 mA |
| Output Signal | TTL same as source |
| Cable Length – Standard | Sensor: 10 ft. [3 m]
Amplifier: 1.5 ft. [0.46 m] |
| Dimensions (L x dia.) | Amplifier: 2.65 in. (L) x 1.38 in. x 1.05in. [67.3 mm x 35.0 mm x 26.7 mm] |
Specifications are subject to change without notice.
