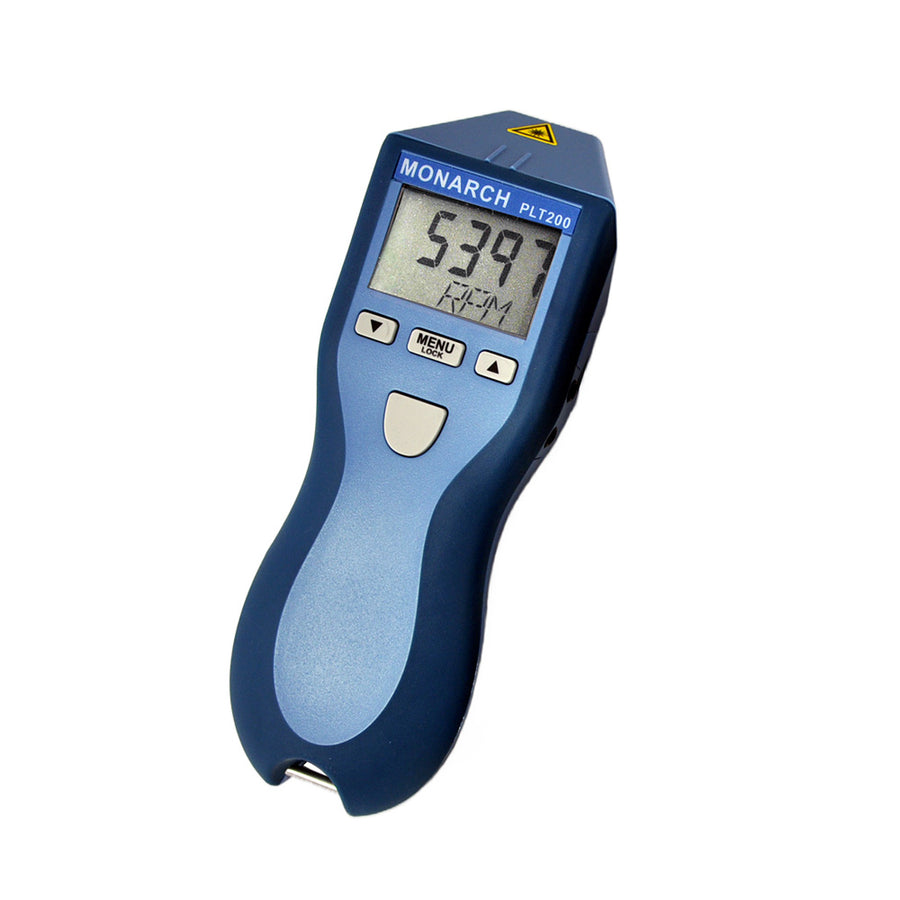

Monarch Instrument PLT200 Pocket Laser Tachometer

PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time while providing a non-slip rubber surface for single-hand operation.

Multifunction
The PLT200 is a 32-function Tachometer/Rate Meter, Totalizer/Counter, and Timer (stopwatch), programmable in both Imperial and Metric units. It includes two phone plug connectors, including an input for our optional Remote Contact Assembly (RCA) or remote sensors and a TTL compatible pulse output to trigger devices like vibration data collectors or stroboscopes. The kit is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel, all in a latching carrying case. Sensors, 12- inch Contact Wheel, and input/output cable are optional.

*Performance subject to the intensity of ambient light irradiation.

Features

• Operating Range up to 25 feet* (Class 2 visible laser)
• Accepts Remote Contact Assembly (optional)
• Accepts Remote Sensors (optional)
• TTL Pulse Output (requires optional 6-foot BNC Cable)
• Auto Ranging/Fixed Decimal (user selectable)
• English and Metric Rates
• Tripod Mounting Bushing
• On-Target and Low Battery Indicators
• Rugged Rubberized Housing
• NIST Traceable Certificate included

All Pocket Tach Series instruments provide a unique ergonomic design that allows you to safely observe both the display and the rotating target at the same time.

What's in the box?

PLT200 (6125-010) includes:

PLT200 tachometer/totalizer/timer and 12 inches of T-5 Reflective Tape

• Documentation: operation manual, product registration card, and NIST Traceable Certificate

PLT200 Kit (6125-011) includes:

PLT200 tachometer/totalizer/timer, Remote Contact Assembly (RCA) for contact speed measurement, and 5 ft. of T-5 Reflective Tape

• Documentation: operation manual, product registration card, and NIST Traceable Certificate
• Ships in a standard carry case with die-cut foam insert
