Monarch Instrument Proximity Sensors
$155.00
SKU: MON-6180-013
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

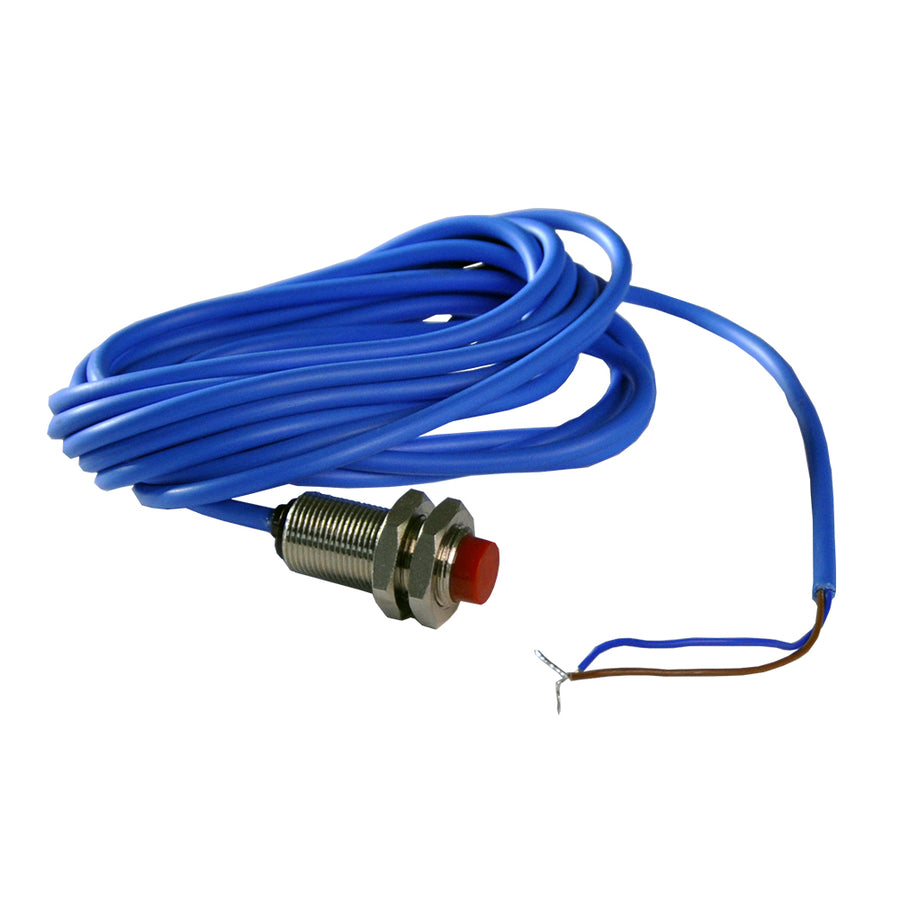

The P5-11 Proximity Sensor has two-wire inductive NAMUR output with 10 ft. cable and tinned leads; 1-120,000 RPM
The P5-11 is a rugged industrial 2-wire probe-style inductive sensor. It can be used 0.2 inch [5 mm] from a 0.5 inch [12 mm] metallic target such as a bolt head or shaft locking key.
Specifications
| Speed Range | 1-120,000 RPM |
|---|---|
| Switching Frequency | 2000 Hz |
| Operating Distance | 0.2″ [5 mm] from 0.5″ [12 mm] metallic target |
| Operating Temperature | -13° to 158 °F (-25° to 70 °C) |
| Power Requirement | 5.0 to 30 Vdc
Absorption current: @ 8.2 V In presence of metal: ≤ 1mA In absence of metal: ≥ 3mA |
| Output Signal | NAMUR (DIN 19234) |
| Standard Cable | 10 ft. [3 m] with tinned heads |
| Dimensions | 1.56 in. (L) x 0.55 in. [40 mm x 14 mm] |
Specifications are subject to change without notice.
