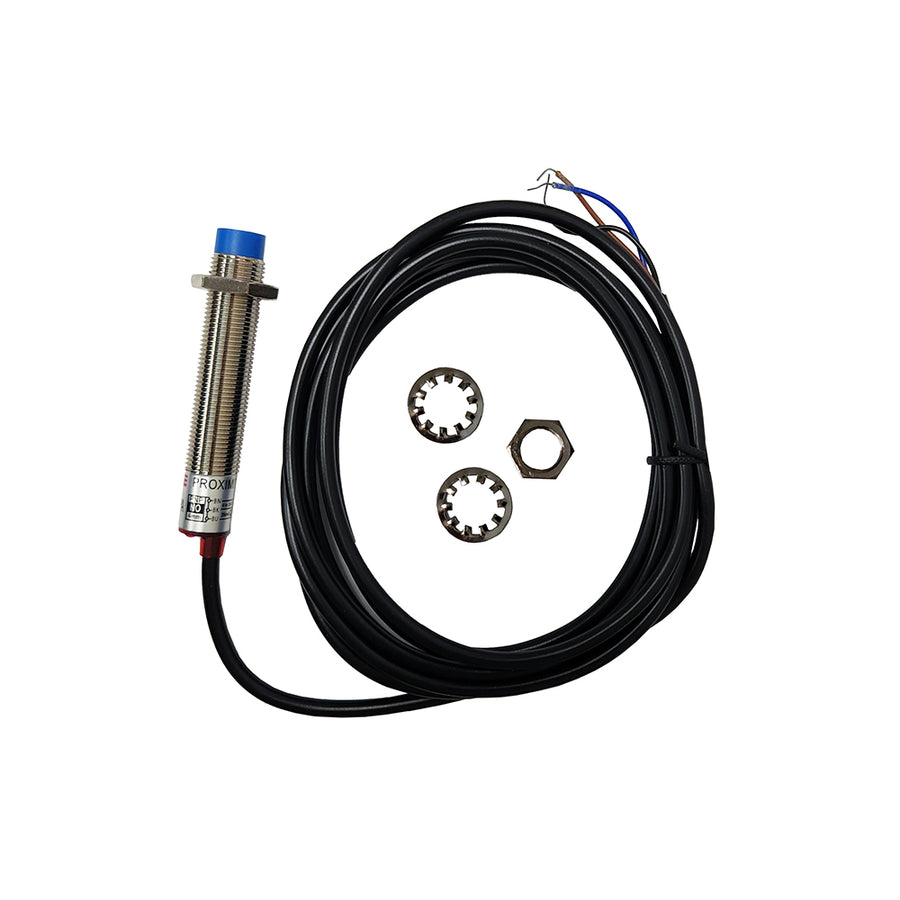

Monarch PS-12 Instrument Proximity Sensors
The PS-12 Inductive Proximity Sensor is a three-wire sensor that outputs an open collector PNP pulse. The sensor operates at a 0.15 inch [4 mm] gap with a 0.45 inch [12 mm] target and has a red LED On-Target Indicator. The sensor is housed in a threaded metal IP67 shell and supplied with an M12 nut and 6 ft. shielded cable with tinned wires.
Longer Cable Models and Bulk Sensor Cable are available for any of our sensors. Please give us a call or email us for pricing.
Detailed Description
1-24,000 RPM. The PS-12 Inductive Proximity Sensor is a rugged industrial 3-wire probe-style inductive sensor. It can be used up to 0.15 in. [4 mm] from a 0.5 in. [12 mm] metallic target such as a bolt head or shaft locking key. Includes a red LED On-Target Indicator.
Specifications
| Maximum Speed | 24,000 RPM (400 Hz) |
|---|---|
| Output Signal | Open Collector PNP – normally open (NO) |
| Sensing Distance | 0.15 in. [4 mm]
Target should be at least = sensor diameter |
| Sense Indicator | LED indicates target present |
| Operating Temperature | -13° to +167 °F [-25° to +75 °C] |
| Power Requirement | 6 – 36 Vdc @15 mA |
| Cable Length – Standard | Including sensor, 6 ft. [1.8 m] |
| Material | IP67 |
| Mechanical | Threaded metal |
| Dimensions | 2.36 in. (L) x 0.48 in. diameter [60 x 12 mm] |
Specifications are subject to change without notice.
