ROS-HT-W-25 Remote Optical Sensor High Temperature
The ROS-HT-W-25 Remote Optical Sensor High Temperature is ideal for measuring rotational speed harsh environments! It’s a threaded stainless steel remote optical sensor with a visible incandescent white light source. With a 25-foot cable, it’s ideal for automotive and truck cooling system testing up to 125 °C (257 °F). 1-50,000 RPM!
Detailed Description

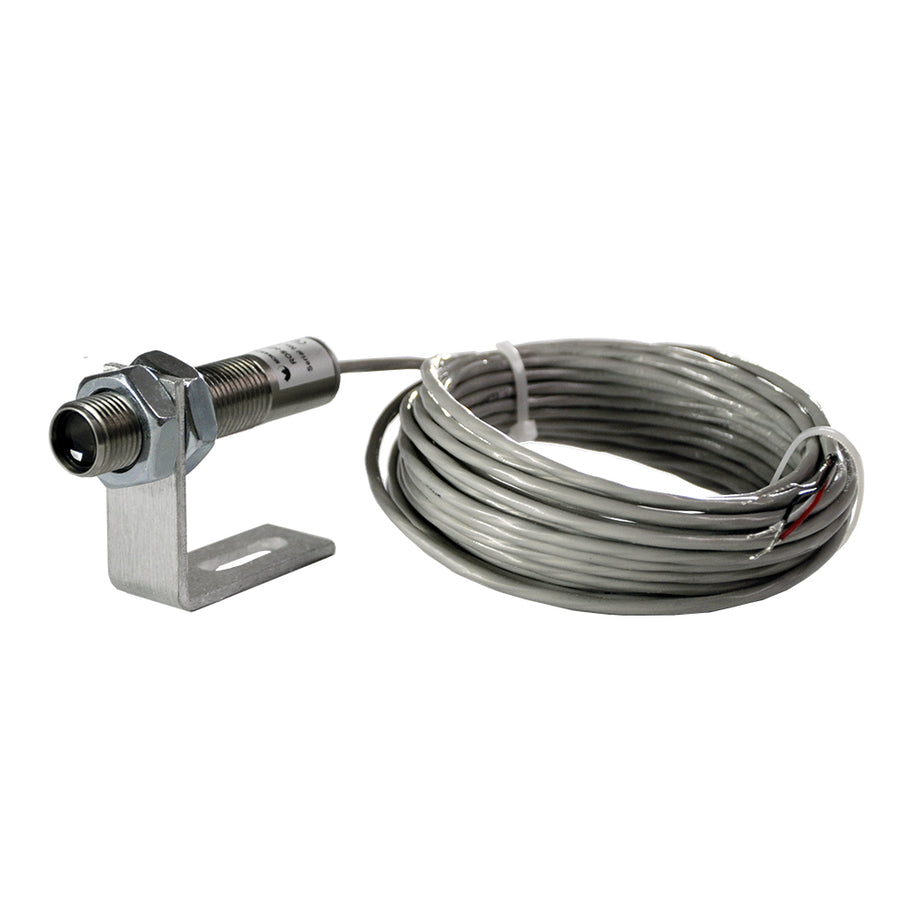

The High-Temperature Remote Optical Sensor has a visible incandescent white light source and can accurately measure speeds from 1-50,000 RPM from a distance of up to 24 inches with a maximum offset angle of 30 degrees from the rotating object. It is ideal for measuring rotational speed in high temperature environments up to 257 °F [125 °C]. The sensor is housed in a threaded 303 stainless steel tube and supplied with a 90 degree mounting bracket, jam nuts and a 25 ft. shielded cable terminated with tinned wires.
Specifications
| Speed Range | 1-50,000 RPM |
|---|---|
| Operating Temperature | -13 °F to 257 °F (-25 °C to 125 °C) |
| Operating Range | up to 24″ [0.76 m] and 30° offset from the target |
| Power Required | 6-24 Vdc @ 48 mA |
| Illumination | Incandescent lamp |
| Output Signal | Positive pulse 0 to input voltage (+V) |
| Standard Cable | 25 ft. [7.6 m] |
| Connection | Tinned wires |
| Material | 303 stainless steel supplied with two M16 jam nuts and mounting bracket |
| Lens | Glass Pyrex |
| Dimensions | Threaded tube 2.90 in. x 1.5 in. x 0.62 in.diameter [M16 x 74 mm] long |
Specifications are subject to change without notice.
