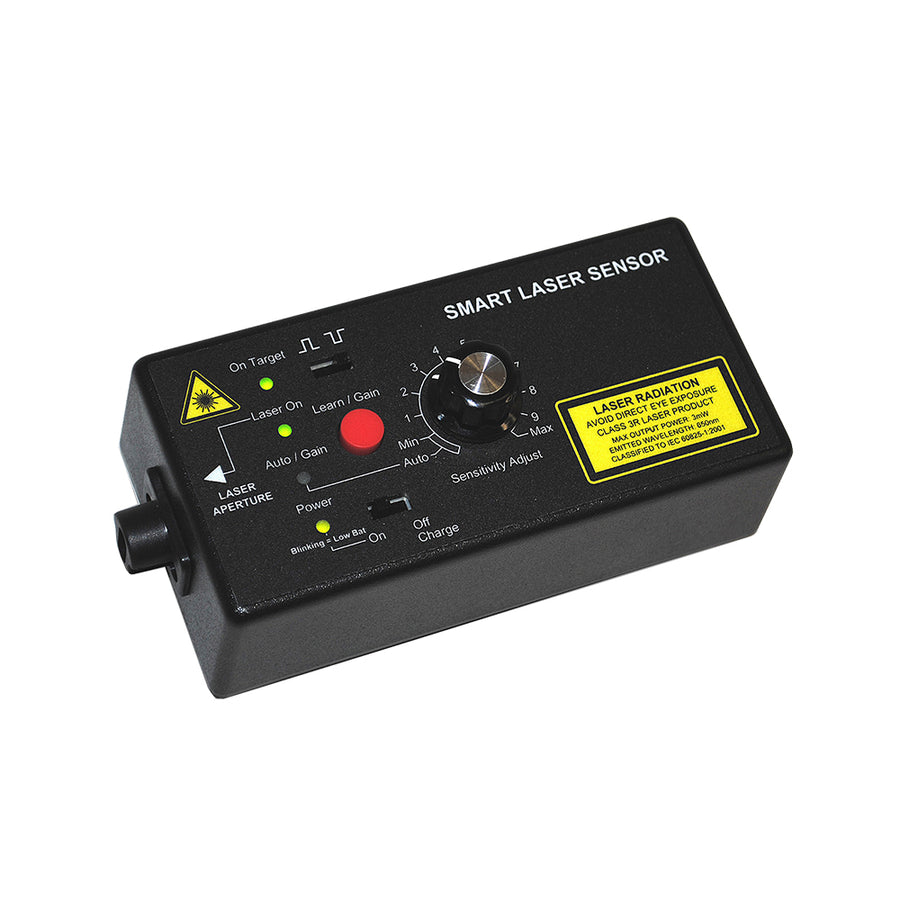

Monarch Smart Laser Sensor for Measuring Speed with NIST Calibration Certificate
The Smart Laser Sensor (SLS) is an internal battery-powered optical sensor utilizing a visible Class 3R Laser for a TTL pulse output. This sensor has an operating range up to 65 feet with reflective tape and up to 3 feet* [1 m] contrasting color targets, bolt heads, or blades.
The SLS includes a power supply, cable, T-5 Reflective Tape, and NIST Calibration Certificate.
*Performance subject to the intensity of ambient light irradiation.
Detailed Description
The Smart Laser Sensor (SLS) is a self-contained unit intended to be used to make noncontact speed measurements from rotating targets at distances up to 65 feet [19.8 m] or to provide non-contact reference points to balancing equipment.
The unit will output one (TTL Compatible) pulse per revolution and has the ability to compute the RPM internally and output the ASCII values to any equipment capable of receiving an RS232 input. For best performance use reflective tape for the target.
Features
- “Smart” auto gain provides in picking up target reflection
- On-Target Indicator
- TTL pulse output signal inverter switch
- Manual sensitivity knob provides dynamic fine-tuning of sensor response
- On/Off or Recharge/Battery Condition Indicator
- Class 3R visible laser
- Signal/Pulse/RS232 output DIN connector port
- External DC power or port
- Tripod Mounting Bushing (¼ – 20 UNC)
Application
- Portable balancing TTL trigger
- Automotive and aerospace performance testing
- Vibration data collection TTL trigger, synchronous time averaging
- Paper making
- Converting felt speed, feed rates
- Data acquisition TTL trigger
- Rotating machinery speed readings and TTL trigger
Specifications
For a complete list of specifications, see the product manual.
| Classification | Class 3R (per IEC 60825-1 Edition 3 2014)
Complies with 21CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, date June 24, 2007. Maximum Laser Output |
|---|---|
| Pulse Duration | Continuous |
| Laser Wavelength | 650 nm |
| Beam Divergence | < 0.5 mrad |
| Beam Diameter | 4 x 7 mm typical @ 2 m |
| Laser Diode Life | 8,000 hours MTBF (1 year warranty) |
| 1/2" reflective tape (T-5) @3600 RPM | Up to 65 ft. [19.8 m] or up to 75° from target |
|---|---|
| White/black contrast @ 3600 RPM | Up to 3 ft. [91 cm] or up to 45° from target |
| Black mark on dental drill | Up to 4 in. [10 cm] @ over 260,000 RPM |
| Maximum RPM | 500,000 |
| Minimum Trigger Duration | 10 μsec |
| Indicators | LEDs for On-Target, Laser On, Auto/Gain, and Power/Charge |
| Batteries | Rechargeable sealed NiMH AA 1.2V 1200 mAh |
| Connector | Circular DIN 5-Socket – Common; Outputs: SO and OC; Serial RS232: Transmit and Receive |
| Mounting | ¼-20 UNC Bushing included (tripod mount) |
| Dimensions (LxHxW) | 5.38 in. (including snout) x 2.53 in. x 2.25 in. [13.67 cm x 6.42 cm x 5.72 cm]
including knob and feet |
Specifications are subject to change without notice.
