Monarch Instrument SPSR-IM Self Powered Sensor Interface Module and Optional Sensors

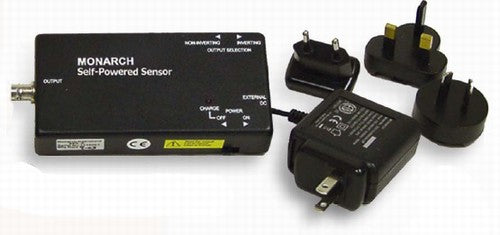

The unique SPSR Self-Powered Sensor with internal rechargeable batteries provides the required power to Monarch Instrument’s ROS-P, ROLS-P, IRS-P, and MT-190P.
SPSR-IM (module only) includes: Interface Module with SPSR-U 115/230 Vac power supply/recharger.
The SPSR-IM Self-Powered Sensor Interface Module is a self-contained, rechargeable battery powered device for developing a TTL compatible one pulse per revolution output for triggering external equipment such as vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers and magnetic tape recorders.
For convenience, the SPSR-115/230 Kits includes our most popular sensor, the ROS-P. The SPSR-IM is the interface module only and can be paired with any of the following (4) sensors (ordered separately) to best suit your particular application:
A visible optical red LED light source (Model: ROS-P PN: 6180-057)
A visible optical red laser light source (Model: ROLS-P PN: 6180-029)
An infrared light source (Model: IRS-P PN: 6180-020)
An amplified magnetic sensor (Model: MT-190P PN: 6180-036)
Specifications
See the ROS-P Remote Optical Sensor page for product details.
| Internal Batteries | Internal Batteries Nickel metal hydride (NiMH) battery pack, 4.8 Vdc |
|---|---|
| Operating Interval | >40 hours typical with ROS-P (~40 mA load) |
| Charge Time | Up to 4 hours |
| Output | TTL compatible pulse, INVERTED or NON-INVERTED switch selectable
With ROS (negative pulse) input, output will be a positive pulse when set to inverted or negative pulse when set to non-inverted; optionally, the output can be open collector (external pull-up required) |
| Bandwidth | 0 to 100 kHz |
| Battery Current Draw | 12 mA with kΩ load (operational) |
| 7.5 V Input Current Draw | 14 mA with kΩ load (operational) |
| Power Supply | SPSR-U (operational/charge) |
| LED Indicator | Status indication; see LED Indication section of the product manual |
| Output Connector | BNC connector (female) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Weight | 8.3 oz. (235 g) |
| Dimensions | 5.0 in. x 2.5 in. x 1 in. [127 mm x 64 mm x 25 mm] |
