Monarch Instrument

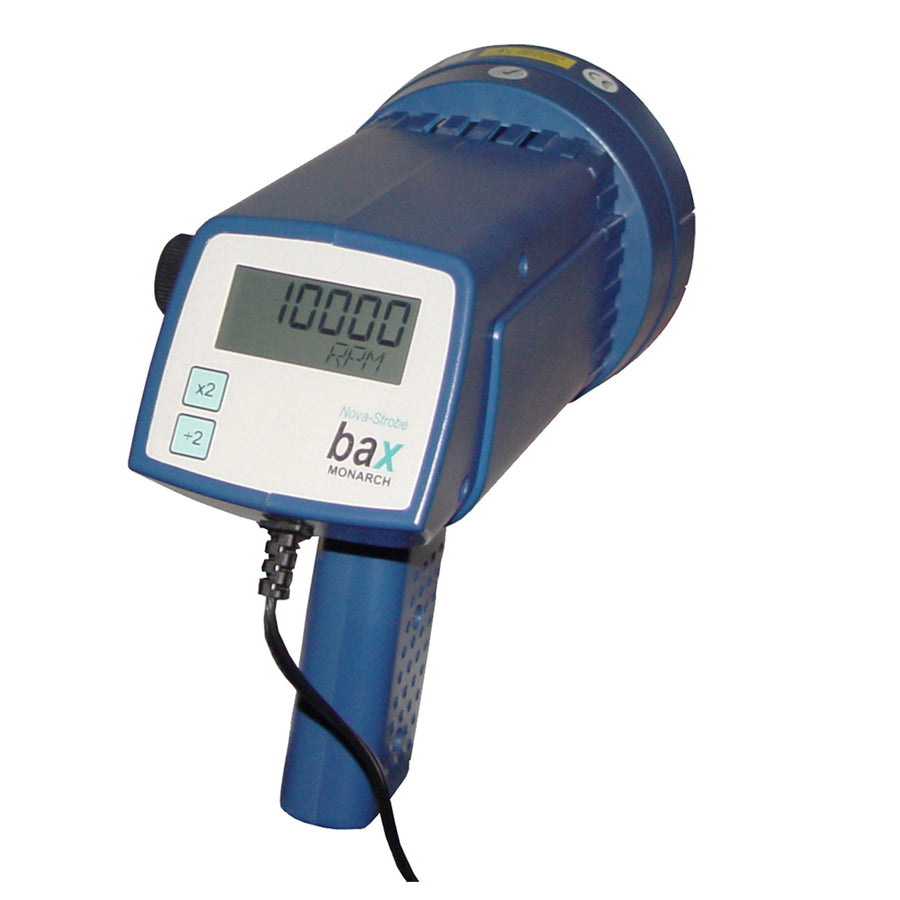

Monarch Nova-Strobe

$750.00

SKU: MON-6207-013

Request a Quote

✓ Authorized Dealer ✓ 7-Day Returns ✓ Expert Support

Description

Specifications

Shipping & Returns

Downloads

The Nova-Strobe X series represents the latest in portable stroboscope technology. Both the bax and bbx are simple to operate, just point and shoot. Lightweight and bright with flash rates to 10,000 flashes per minute (FPM) and times 2 and divide by 2 buttons allow for differentiating true RPM from harmonics. A large dual line digital LCD it easy to adjust and read. The flash rate adjustment is quickly made with the tactile tuning knob. These strobes are light weight and comfortable to hold.

Monarch Nova-Strobe BAX 115 Includes:
Basic 115 Vac powered strobe

Monarch Nova-Strobe BAX KIT 115 Includes:
Basic 115 Vac powered strobe, spare lamp and latching carrying case

Monarch Nova-Strobe BAX 230 Includes:
Basic 230 Vac powered strobe

Monarch Nova-Strobe BAX Kit 230 Includes:
Basic 230 Vac powered strobe, spare lamp in latching carrying case

Monarch Nova-Strobe BBX 115/230 Includes:
Basic battery powered strobe with universal recharger

Monarch Nova-Strobe BBX Kit 115/230 Includes:
Basic battery powered strobe with universal recharger and spare lamp in latching carrying

case

Specifications

Flash Range	30-10,000 FPM/RPM
Flash Rate Accuracy	±1 FPM
Flash Rate Resolution	1 FPM
Flash Duration	10-25 microseconds (auto adjust with flash rate)
Flashtube (Lamp) Life	100 million flashes
Light Output	Average Power: 15.5 watts typical > 4000 FPM Instantaneous (per flash): 230 mJoule typical to 4000 FPM
Input Power	AC powered: 115 Vac or 230 Vac, 35 VA (as ordered)
Run Time	Continuous within temperature limitations; vents must not be restricted and unit must be horizontal
Display	LCD with 6 numeric 0.506 in. [12.85 mm] high digits and 5 alphanumeric 0.282 in. [7.17 mm] high digits
Indicators	Battery level
Display Update Rate	Instantaneous
Knob Adjustment	Digital rotary switch with 36 detents per revolution; velocity-sensitive
Memory	Last setting before power down is remembered and restored on next power up
Time Base	Ultra-stable crystal oscillator
Safety	This product is designed to be safe for indoor use under the following conditions (per IEC61010-1)
Operating Temperature	32-104 °F [0-40 °C] May be operated for short time periods, slightly beyond the stated temperature range.
Humidity	Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C)
Compliance	CE Compliant
Weight	1.55 lbs (0.70 kg)
Dimensions (LxWxH)	Body: 9 in. x 3.66 in. x 3.56 in. [229 mm x 93 mm x 90 mm]; Reflector Housing: 4.8 in. [122 mm] diameter; Handle: 4.25 in. [108 mm] long

Specifications are subject to change without notice.
