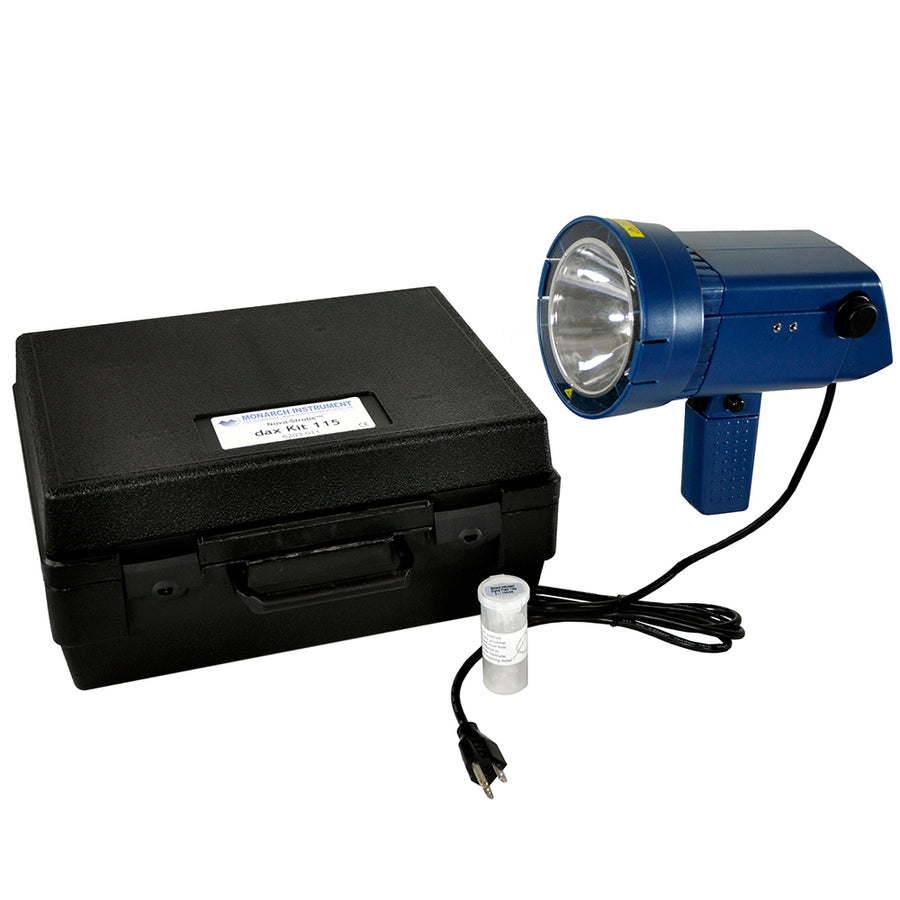

Monarch Nova-Strobe DAX

Brighter and lighter than ever the new Nova-Strobe X series sets the standard for high intensity multi-function portable stroboscopes. Models are available with digital displays, battery or AC power, and a useful range of features which provide unmatched performance and value. Four models range from the Nova-Strobe dbx Deluxe the most versatile battery powered digital stroboscope with internal phase shifting, down to the Nova-Strobe bax Basic, the most cost effective AC powered digital stroboscope.

The AC powered Nova-Strobe dax provide a range of 30 to 20,0000 flashes per minute and an accuracy of ±0.002 of setting. Flash rates are easily adjusted to fractional RPM by a coarse/fine control knob. Individual TTL compatible input and output jacks are provided for `daisy chaining' of multiple strobes, triggering from an external source, or providing a trigger signal to external equipment. The dax provide internal phase shifting to keep the target precisely in view. Both provide x2 and ÷2 capability for distinguishing actual RPM from harmonic frequencies. In addition, 6 user presetable memory flash rates for repetitive measurements and storage of the last flash rate measured are included. he dax AC powered stroboscope (115 or 230 Vac) is designed for continuous cool operation, and weighs only 1.5 lbs. (0.72 kg). Features
Internal phase shifting allows the target to be jogged clockwise or counter clockwise in 5° increments.
Times 2 and divide by 2 push buttons allow easy checking for actual RPM, harmonics and allow stop motion far beyond the 14,000 fpm limit.
Store and recall up to 6 user selectable values. Last measurement memory, even with the power off.
Flash rate may be displayed in Flashes per Minute (RPM) or Flashes per Second (Hz)
Individual input and output TTL jacks (1/8 inch phone) provides power to remotes sensors and allows "daisy-chaining" of multiple strobes. Power is provided for external sensors
A Tachometer mode allows accurate speed measurement up to 250,000 RPM using external sensors.
Tripod mounting bushing in handle
CE Approved N.I.S.T. Certificate of Calibration included.

Features:

• AC Powered; electronic switching allows for continuous cool operation
• Flash rates from 30 to 20,000 flashes per minute, adjustable in 0.01 step increments, the coarse/fine adjustment knob makes it quick and easy to set the exact flash rate you want; the ALT knob function multiplies the initial flash rate by 2, 3, 4, 5, etc.
• Six keypad buttons provide easy control over strobe’s powerful features
• Individual input and output TTL jacks (1/8″ phone) provide power to remote sensors and allow daisy-chaining of multiple strobes
• Times 2 (x2) and Divide by 2 (÷2) push buttons allow easy checking for actual RPM, harmonics and allow stop motion far beyond the 20,000 FPM limit
• Flash rate may be displayed in Flashes Per Minute (FPM) or flashes per second (Hz)
• Tachometer Mode allows accurate speed measurement up to 250,000 RPM using external sensors
• Store and recall up to 9-user selectable values; last measurement memory, even with the power off
• Internal phase-shifting allows the target to be jogged clockwise or counterclockwise in 5° increments
• ¼ x 20 tripod mount in handle
• NIST Traceable Certificate included
