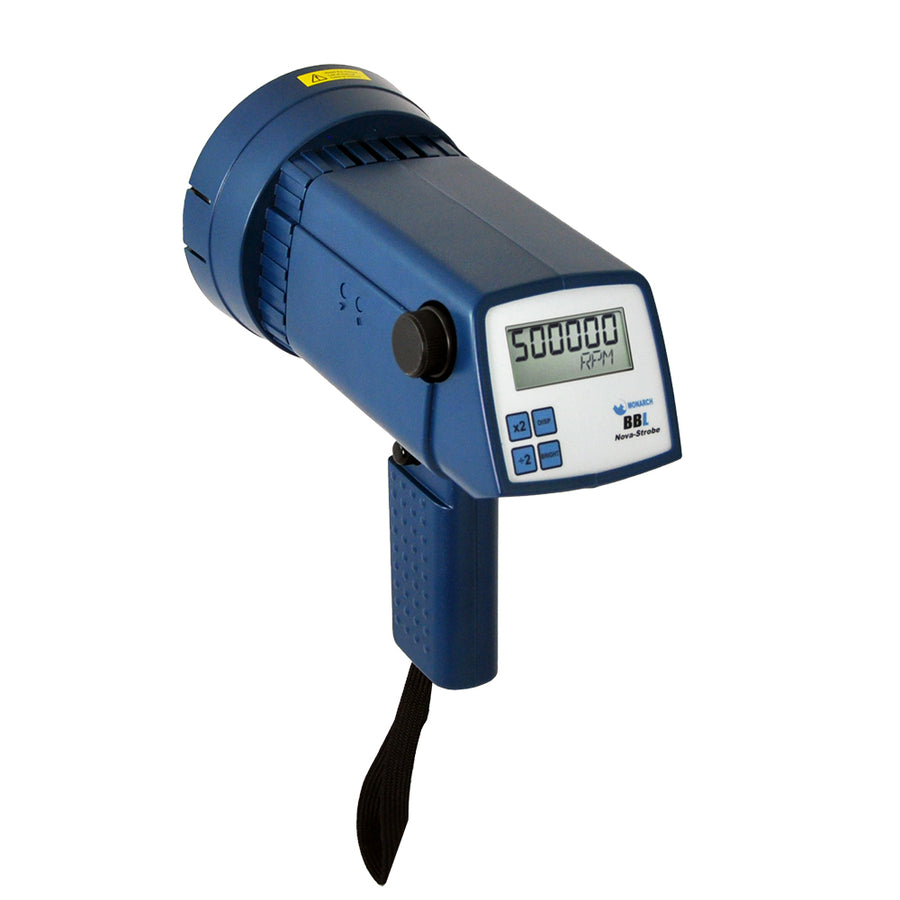

Nova-Strobe™ BBL LED Portable Stroboscope
The Nova-Strobe™ BBL LED Portable Stroboscope is a rugged industrial stroboscope that provides extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurement. The unit has a pistol grip with lockable trigger switch and wrist strap for comfortable handheld operation or it may be mounted on a tripod using the integral ¼ -20 UNC thread at the base of the handle. Available with NIST Traceable Certificate
Detailed Description
BBL Basic models include Stroboscope with a universal 115/230 recharger with interchangeable wall plugs and an instruction manual.
The Monarch Nova-Strobe™ LED family of rugged industrial stroboscopes provides an extremely bright, uniform light output for performing stop-motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.
The Basic BBL is designed for simple stop-motion inspection and RPM measurement applications.
To see the latest in portable stroboscope technology, take a look at the Nova-Pro® 100!
Features
- Flash Range: 30 to 500,000 FPM
- Battery and NiMH battery universal recharger included
- Diagnostic inspection and RPM checks
- Tripod mounting bushing (1/4-20) in the handle
- CE marked and RoHS compliant
- Flash rate may be displayed in Flashes per Minute (FPM) or flashes per second (Hz)
- Digital backlit LCD
- Adjustable brightness control
- Lightweight industrial design
Benefits of LED
- Energy efficient with long battery life (8-10 hours typical)
- Extremely bright, uniform light output
- Completely silent
- Cool operation
- No lamp replacements
- Extremely high flash rates (up to 500,000 FPM)
What's in the box
Nova-Strobe BBL (6230-010) includes:
Nova-Strobe and NiMH battery universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs
- Documentation: operation manual and product registration card
Nova-Strobe BBL with NIST Certification (6230-010-NIST) includes:
Nova-Strobe and NiMH battery universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs
- Documentation: operation manual, product registration card, and NIST Traceable Certificate
Nova-Strobe BBL Kit (6230-011) includes:
Nova-Strobe and NiMH battery universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs
- Ships in a standard plastic molded carry case
- Documentation: operation manual and product registration card
Nova-Strobe BBL Kit with NIST Certification (6230-011-CAL) includes:
Nova-Strobe and NiMH battery universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs
- Ships in a standard plastic molded carry case
- Documentation: operation manual, product registration card, and NIST Traceable Certificate
Specifications
| Flash Range | 30-500,000 FPM, 0.5 to 8333.33 Hz |
|---|---|
| Flash Rate Accuracy | 0.01% of setting or ± 1 last digit |
| Flash Rate Resolution | 0.01 to 1 FPM, 0.1 FPM resolution above 9,999.99 FPM, 1 FPM resolution above 99,999.9 |
| Display Update Rate | Instantaneous |
| Light Source | 12 LED array |
| Light Output | Average: 3000 lumens @ 6000 FPM 12 in. from lens |
| Flash Duration | Adjustable 0.5 to 3000 μs or 0.2 to 14 degrees of rotation (auto adjust with flash rate) |
| Display | LCD with 6 numeric 0.506 in. [12.85 mm] high digits and 5 alphanumeric 0.282 in. [7.17 mm] high digits |
| Indicators | Battery level |
| Knob Adjustment | Digital rotary switch with 36 detents per revolution; velocity sensitive |
| Time Base | Ultra-stable crystal oscillator |
| Input Power | Internal NiMH rechargeable batteries with external 115/230 Vac 50/60 Hz recharger |
| Run Time | 12 hours typical @ 6000 FPM and 2.8° pulse width with fully charged batteries |
| Charge Time | Four to five (4-5) hours typical with provided recharger |
| Weight | 1.9 lbs. (860 g) |
| Dimensions | Body: 9 in. x 3.66 in. x 3.56 in. [229 mm x 93 mm x 90 mm];
Reflector Housing: 4.8 in. [122 mm] dia.; Handle: 4.254 in. [108 mm long] |
| Safety | This product is designed to be safe for indoor use under the following conditions (per IEC61010-1). |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Humidity | Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C) |
Specifications subject to change without notice.
