North Instruments LLC
NID-2000 Dynamic Signal Simulator
$2,950.00
SKU: NI-NID-2000
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns

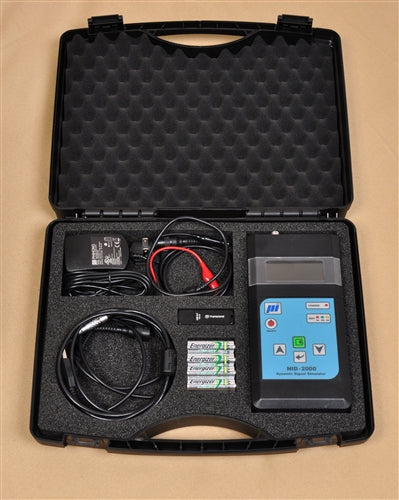

NID-2000 Dynamic Signal Simulator is a battery operated instrument which is used to electronically simulate outputs from various types of sensors and transmitters. The device can be used as stand-alone device or it can be PC driven via embedded USB communication.
In PC mode the device provides all the benefits of a stand-alone mode, with the difference that includes a number of useful tools that make it easier to use. Thus, for example, the software contains a database of sensors and transmitters major manufacturers in the area of vibration, but has and the option of "Customer defined". Also by using the profile enables storing of data settings for future use, and so on.
Specifications Input/Outputs
Output types Single-ended Voltage (mV)
IEPE (ICP ) - Current Sinking
Loop powered Current Source (mA)
Single-ended Charge (pC)
Differential Charge (pC)
Tachometer (TTL)
Flow Meter (TTL)
OSO - Optical Speed Output
Input type BOV - Bias Output Voltage
Frequency range 1Hz to 10kHz
Output range 10mV to 10,000mV RMS; 10pC to 10,000pC
In PC mode the device provides all the benefits of a stand-alone mode, with the difference that includes a number of useful tools that make it easier to use. Thus, for example, the software contains a database of sensors and transmitters major manufacturers in the area of vibration, but has and the option of "Customer defined". Also by using the profile enables storing of data settings for future use, and so on.
Specifications Input/Outputs
Output types Single-ended Voltage (mV)
IEPE (ICP ) - Current Sinking
Loop powered Current Source (mA)
Single-ended Charge (pC)
Differential Charge (pC)
Tachometer (TTL)
Flow Meter (TTL)
OSO - Optical Speed Output
Input type BOV - Bias Output Voltage
Frequency range 1Hz to 10kHz
Output range 10mV to 10,000mV RMS; 10pC to 10,000pC
Contact us at (214) 238-0493 for full specifications.
