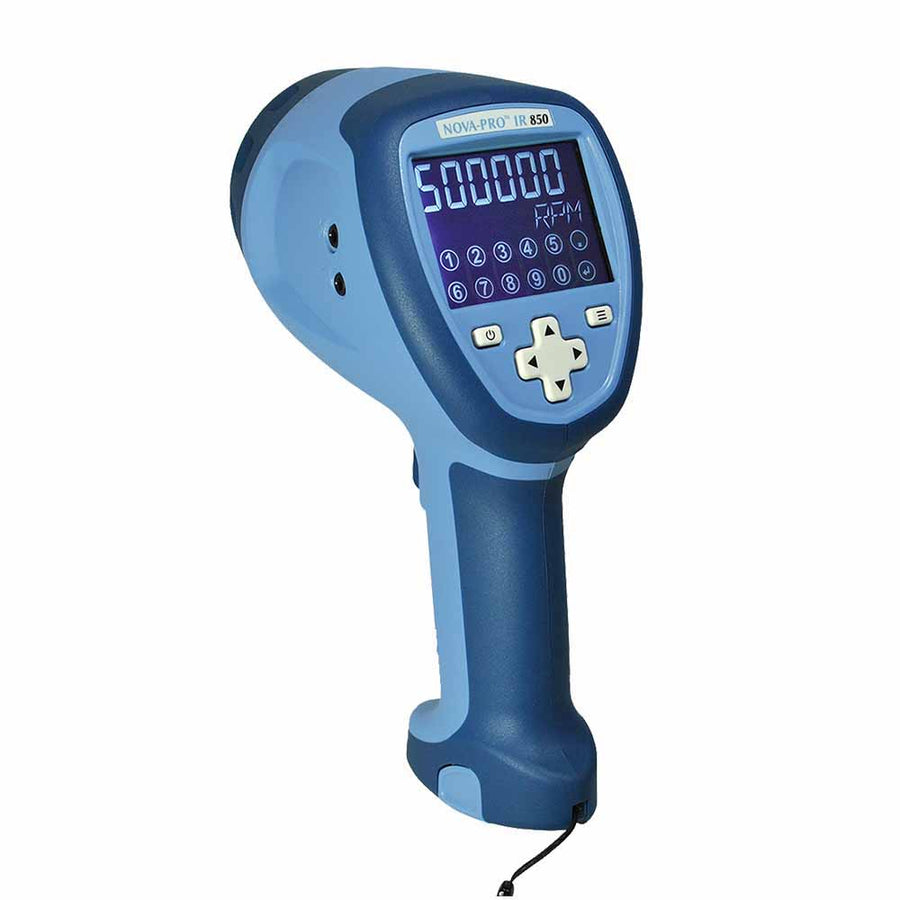

Nova-Pro® IR 850 Infrared Stroboscope/Tachometer with NIST Certificate

As the latest edition to the Nova-Pro^® series, the IR 850 is a handheld infrared (IR) LED stroboscope used most for stop-motion inspection and stop-motion photography/filming. This compact, ergonomic strobe also operates as are a full-function laser tachometer to become a powerful two-in-one inspection tool. The stroboscope light source is comprised of twelve (12) 850nm LEDs. The IR 850 has a long battery life – up to 9.5 hours on a single charge. With the optional AC adapter, continuous operation is possible.

Note: Integral optical reflective sensor used as a flash trigger protected under US Patent 10,080,268.

Features

• Adjustable near-infrared (NIR) light at 850nm
• Removable Laser Module Integral optical sensor and flash trigger protected under US Patent 10,080,268
• Stroboscope and tachometer in one!
• Splash-resistant and dust-resistant IP54 enclosure
• 1/4″ x 20 tripod mount
• Ergonomic one-handed operation
• Removable rechargeable Li-ion battery
• Continuous AC operation available
• TTL compatible input/output jacks
• NIST Traceable Certificate included

Benefits of IR LEDs

• Energy efficient with long battery life (9 hours typical)
• Uniform light output
• Completely silent
• Cool operation
• No lamp replacements
• Extremely high flash rates (up to 999,999 FPM)
• Reduces glare and reflections from typical “white” light illumination
• Reduces/increases contrasts between differently colored objects for clarity of inspections
• Provides clearer details between white, dark, and grey items
• NIR lighting’s longer wavelengths allow greater penetration of light into materials
• NIR can transmit thru materials like cloth, plastic, semiconductors, glass, and paper making
• NIR can react differently on metals and coatings/films improving the detection of defects

What's in the box

Nova-Pro IR 850 (6240-010) w/ NIST Certification includes:

Nova-Pro IR 850 Strobe with Li-ion battery pack and battery charging station with the interchangeable USA, UK, AUS, and Euro adapter wall plugs

• Documentation: operation manual, product registration card, and NIST Traceable Certificate

Nova-Pro IR 850 Kit (6241-011) includes:

Nova-Pro IR 850 Strobe with Li-ion battery pack and battery charging station with the interchangeable USA, UK, AUS, and Euro adapter wall plugs

• Ships in a standard carry case with die-cut foam insert
• Documentation: operation manual, product registration card, and NIST Traceable Certificate
