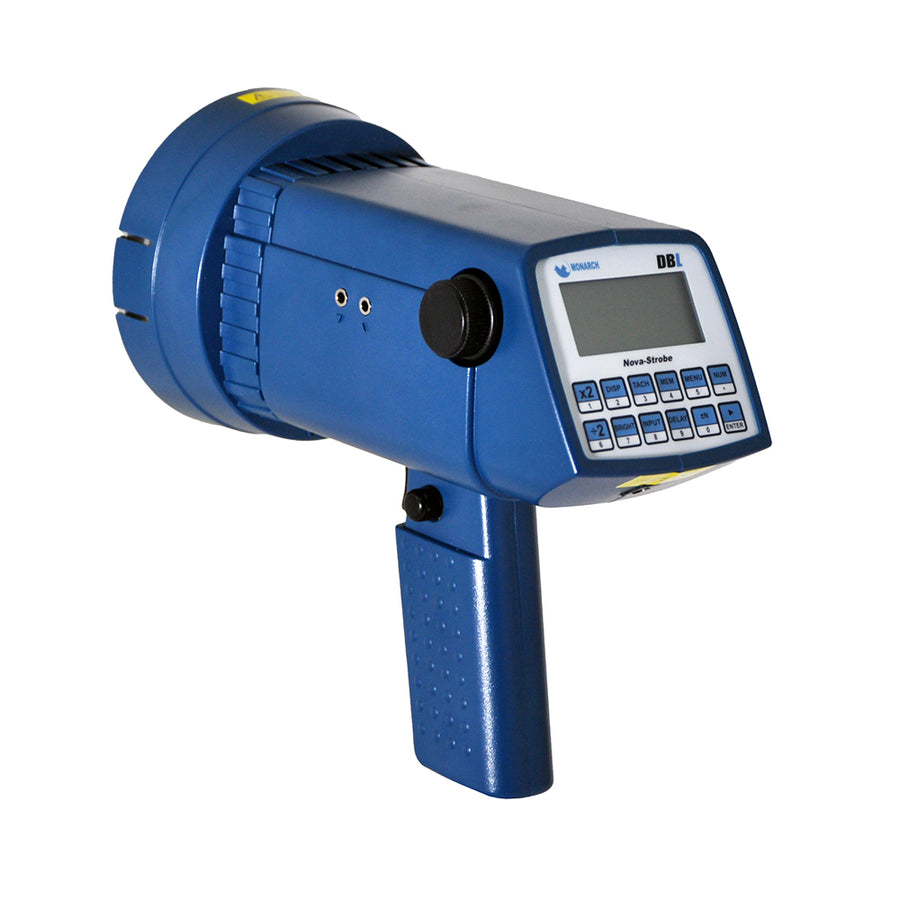

Nova-Strobe™ DBL LED Stroboscope with NIST Certificate
The Nova-Strobe™ DBL LED Stroboscope has internal phase shifting, memory for up to 5 preset flash rates, and tachometer mode for speed measurements up to 500,000 RPM using optional remote sensors or TTL pulse input/output. The Nova-Strobe DBL is lightweight and battery-powered. NIST Traceable Certificate included.
Detailed Description
The Monarch Nova-Strobe LED family of rugged industrial stroboscopes provides an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.
The deluxe Nova-Strobe™ DBL LED Stroboscope adds internal phase shifting, memory for up to 5 preset flash rates, NIST Traceable Certificate, and tachometer mode for speed measurements up to 500,000 rpm using optional remote sensors or TTL pulse input/output.
To see the latest in portable stroboscope technology, take a look at the Nova-Pro 300!
Features
- Flash Range: 30 to 500,000 FPM
- Battery and recharger included
- Diagnostic inspection and RPM checks
- Digital backlit LCD
- Tripod mounting bushing (1/4-20) in the handle
- CE marked and RoHS compliant
- Flash rate may be displayed in Flashes Per Minute (FPM) or flashes per second (Hz)
- Adjustable brightness control
- Lightweight industrial design
- 12-button keypad makes entering flash rates extremely quick
- Individual input and output TTL jacks (1/8 inch) provides power to remote sensors and allows daisy-chaining of multiple strobes
- Tachometer mode allows accurate speed measurement up to 500,000 RPM using external sensors
- Brightest portable LED strobes available
- NIST Traceable Certificate included
Benefits of LED
- Energy efficient with long battery life (8-10 hours typical)
- Extremely bright, uniform light output
- Completely silent
- Cool operation
- No lamp replacements
- Extremely high flash rates (up to 500,000 FPM)
What's in the box
Nova-Strobe DBL (6231-010) includes:
DBL Stroboscope with NiMH battery universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs
- Documentation: operation manual, product registration card, and NIST Traceable Certificate
Nova-Strobe DBL Kit (6231-011) includes:
DBL Stroboscope with NiMH battery universal 115/230 recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs
- Ships in a standard plastic molded carry case
- Documentation: operation manual, product registration card, and NIST Traceable Certificate
Specifications
| Flash Range | 30-500,000 FPM, 0.5 to 8333.33 Hz |
|---|---|
| Flash Rate Accuracy | 0.004% of setting or ± 1 last digit |
| Flash Rate Resolution | 0.01 to 1 FPM (menu selectable), 0.1 FPM resolution above 9,999.99 FPM,
1 FPM resolution above 99,999.9 |
| Display Update Rate | Instantaneous |
| Internal Phase Delay | Yes |
| Light Source | 12 LED array |
| Light Output | Average: 3000 lumens @ 6000 FPM 12 in. from lens |
| Flash Duration | Adjustable 0.5 to 3000 μs or 0.2 to 14 degrees ofrotation (auto adjust with flash rate)
Note: Flash duration is limited to 10 degrees when running PBL continuously from the external power supply/ charger (PSC-pbxU) powered by the AC mains (115 – 230 Vac). |
| Time Base | Ultra-stable crystal oscillator |
| Display | LCD with 6 numeric 0.506 in. [12.85 mm] high digits and 5 alphanumeric 0.282 in. [7.17 mm] high digits |
| Indicators | Battery level, On-Target, ALT, TACH, and EXT icons |
| Knob Adjustment | Digital rotary switch with 36 detents per revolution; velocity sensitive |
| Memory | Last setting before power down is remembered and restored on next power up |
| Output Pulse | 5 V pulse – positive or negative (menu selectable) one pulse per flash |
| Power Supply – Battery | Internal NiMH rechargeable batteries with 115/230 Vac 50/60 Hz recharger |
| Safety | This product is designed to be safe for indoor use under the following conditions (per IEC61010-1). |
| Operating Temperature | 32-104 °F (0-40 °C) |
| Humidity | Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C) |
| Run Time | 8-10 hours typical @ 1800 FPM |
| Charge Time | 4-5 hours typical with supplied recharger or continuous with power supply |
| Weight | 1.9 lbs. (860 g) |
| Dimensions | Body: 9 in. x 3.66 in. x 3.56 in.
[229 mm x 93 mm x 90 mm]; Reflector Housing: 4.8 in. [122 mm] dia.; Handle: 4.254 in. [108 mm long] |
Specifications are subject to change without notice.
