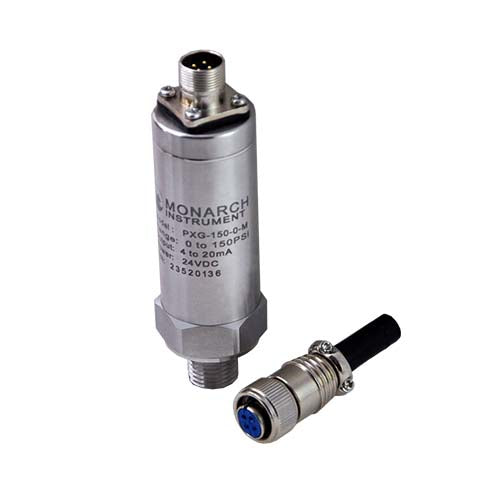

PXG Universal Pressure Transmitter Gauge, 0-150 PSI

The PXG-150 Universal Pressure Transmitter Gauge measures 0-150 PSI and has a 1/4″ NPT connection and 4-20 mA output with either DIN 43650 or M12 connection. NIST Traceable Certificate is available.

Additional pressure ranges (including Absolute), output options, and electrical connections are available upon request. Contact Monarch Instrument for details.

Detailed  Description

The PX Universal Pressure Transmitters use a diffused silicon pressure sensor to sense an applied pressure. Through internal application-specific integrated circuits (ASIC), a millivolt signal is converted and transmitted into a standardized electrical output signal, such as 4-20 mA. This output can be directly used by control systems or data acquisition equipment (such as Monarch Instrument’s DataChart™ DC1250). The compact, lightweight design is easy to install. Simply connect the PX Pressure Transmitter directly to a computer interface card, control instrument, smart meter, or PLC. Long-distance transmission can use current output.

The PX Pressure Transmitters can be ordered in various pressure ranges, and multiple IP65-rated electrical connections are available. The 316L stainless steel enclosure is ideal for harsh, corrosive environments and comes standard with a threaded ¼” NPT pressure connection.

Four Pressure Ranges readily available– each with either DIN 43650 or M12 connection!

• 0-35 PSI
• 0-150 PSI
• 0-350 PSI
• 0-850 PSI
• Others available upon request

Features

• 316L stainless steel diaphragm structure – separates the measuring medium from the pressure sensor
• Rugged enclosure with IP65 connections can withstand harsh environments
• Compact, lightweight design
• Easy to setup, easy to operate
• Full range of models and connections
• Shock and vibration resistance
• Strong anti-interference for enhanced stability
• NIST Traceable Certificate available
