ROSM - Modulated Remote Optical LED Sensor
The ROSM Modulated Remote Optical LED Sensor is designed specifically for use in high ambient light applications where other optical sensors frequently suffer from light interference. The LED light source is modulated, and the light signal is reflected back for processing while all other sources of light are filtered out and/or ignored. 1-20,000 RPM

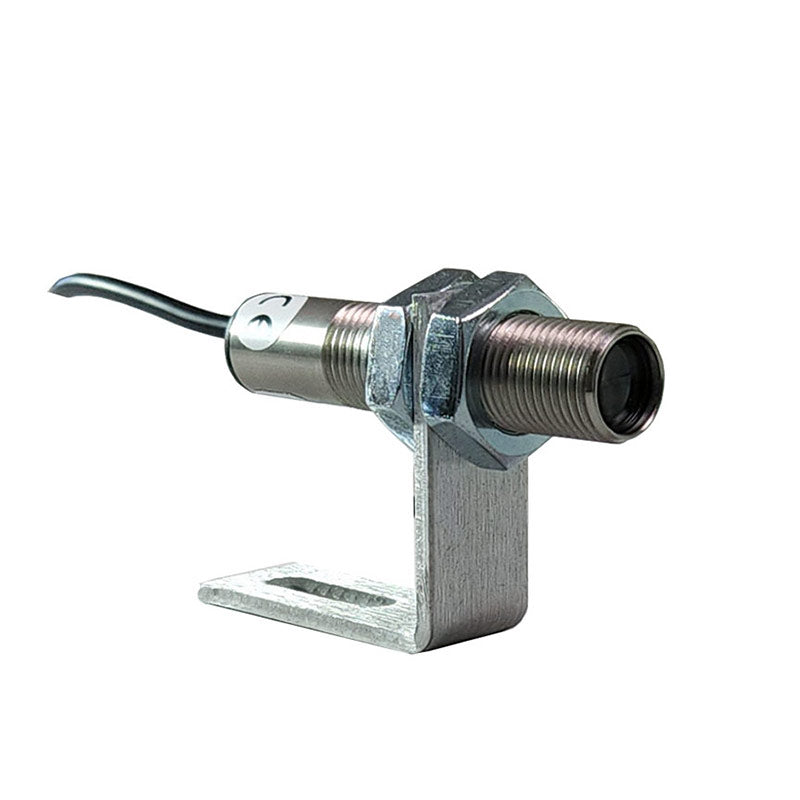

The ROSM are versatile Remote Optical Sensors that have a visible red LED light source and green LED On-Target Indicator. The sensors are housed in a threaded 303 stainless steel tube and are built with various length cables terminated with either tinned wires or 1/8″ [3.5 mm] male stereo plug. All models are supplied with a 90° mounting bracket and jam nuts.
How it works: Instead of being on continuously like our other optical sensors, the LED light source in the ROSM is modulated on and off at a high frequency. That high-frequency light signal is reflected back at the sensor for processing while all other sources of light are filtered out and/or ignored. The ROSM is packaged in a threaded 303 stainless steel tube and has a green LED On-Target Indicator.
ROSM-5P: Modulated Remote Optical Sensor with 8 ft. [2.4 m] cable, 1/8″ [3.5 mm] phone plug connector, mounting bracket, jam nuts, and 12 inches of T-5 Reflective Tape
ROSM-5W: Modulated Remote Optical Sensor with 22 ft. [6.7 m] cable with tinned leads, mounting bracket, jam nuts, and 12 inches of T-5 Reflective Tape
Specifications
| Speed Range | 1 – 20,000 RPM |
|---|---|
| Illumination | Visible red LED |
| On-Target Indicator | Green LED on wire end cap |
| Operating Range | 1 in. [2.5 cm] up to 24 in. [0.6 m] and 45° offset from target |
| Power Requirement | 5.0 – 24 Vdc @ 50 mA |
| Output Signal | Pull-up to Vin; 5V available – consult factory |
| Operating Temperature | 14 °F to 158 °F [-10 °C to 70 °C] |
| Humidity | Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C) |
| Connection | 1/8 in. [3.5 mm] male stereo plug (ROSM-5P); Tinned wires (ROSM-5W) |
| Cable Lengths | ROSM-5P: 8 ft. [2.4 m]
ROSM-5W: 22 ft. [6.7 m] |
| Material | 303 stainless steel tube supplied with mounting bracket and two M16 jam nuts |
| Lens | Acrylic plastic |
| Dimensions | Threaded tube: 2.90 in. x 0.625 in. diameter
[M16 x 1.5 x 74 mm] long |
