Seiffert RollCheck Mini

With Patented Reflected Laser Beam Technology

The  ROLLCHECK® MINI laser alignment system for parallel roll alignment is lightweight, compact and durable. The system can be attached to a roll up to 4" (101 mm) in diameter with the supplied straps. We use our proven reflected laser beam technology for maximum angular resolution, thus providing you with the most reliable and accurate visual reading.

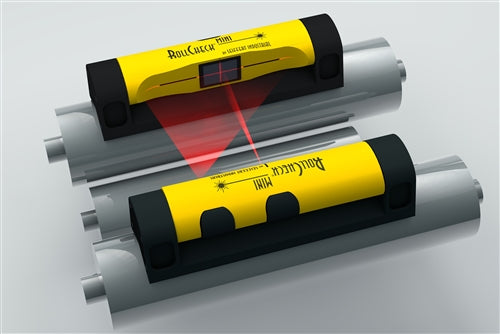

The ROLLCHECK® MINI can measure spans up to 3 ft. (1 m) from roll to roll sizes up to 4"(101 mm) in diameter. A laser line is projected from the ROLLCHECK® MINI transmitter to the reflector mounted on the roll to be checked or aligned. The laser line projected to the reference line on the reflector indicates immediately if the roll is aligned vertically to the stationary roll. The laser line is then automatically reflected back to the transmitters reference line indicating if the rolls are parallel to one another. This system is very easy to use; a single person can perform the alignment task in minutes with no training! The ROLLCHECK® MINI
comes in its own durable carrying case.

Advantages and features are as follows:

• Reduces down time and product waste due to misalignment of rolls
• Increases production with proper alignment of rolls
• Compact design, fits into small spaces
• Fast and easy
• No training required
• One-person operation
• Facilitates more frequent roll checks
• Pays for itself quickly
• Used for shots up to 10 ft. (3 m) or better
