Seiffert SX-5150 RollCheck® Green Laser Roll Alignment System

With Patented Reflected Laser Beam Technology

RollCheck® Green is a visual tool to speed-up quick alignment checks and the replacement of rolls in the processing industry. The RollCheck® roll alignment tool uses the latest in green laser technology that delivers serious results. The green laser lines are 10x's brighter to the operator than a red laser line. Patented reflected beam technology provides an effective, fast and simple way to measure and correct vertical angle (pitch) and horizontal angle (parallelism) between the rolls.

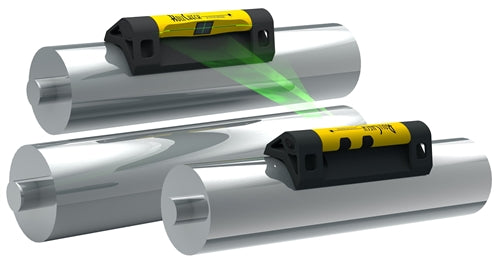

A Laser emitter mounted on a reference roll projects two green laser lines onto the reflector unit mounted on the roll to be measured and adjusted, allowing the operator to view the alignment condition. The laser line is then automatically reflected back to the transmitter's reference line indicating if the rolls are parallel to one another. RollCheck® eliminates cumbersome trial and error adjustments which usually lead to scrap, loss of time and output reduction. Simplicity of operation makes it the ideal tool for roll maintenance.

Advantages and features are as follows:

• Green is 10x brighter than red
• Reduces down time and product waste due to misalignment of rolls
• Increases production with proper alignment of rolls
• Compact design, fits into small spaces
• Fast and easy
• No training required
• One-person operation
• Facilitates more frequent roll checks
• Uses proven reflected laser beam technology
• Pays for itself quickly
• Used for shots up to 10 ft. or better
