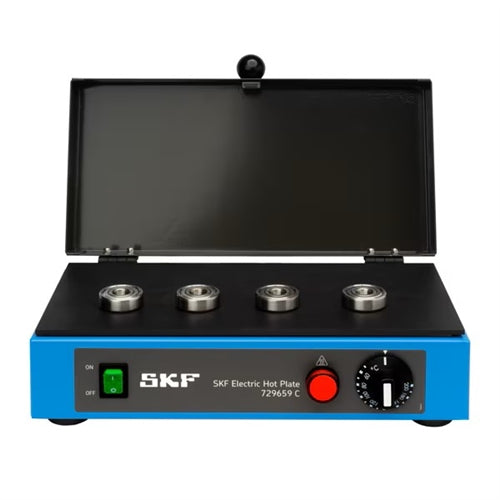

SKF 729659 C Bearing Heating Electric Hot Plate (230 Vac)

The SKF Bearing Heating electric hot plate, 729659 C, is a professional heating device especially designed for pre-heating small bearings prior to mounting. The temperature of the plate can be adjusted at the turn of a knob to provide a temperature range of between 50 and 200 °C (120 and 390 °F).

The electric hot plate 729659 C consists of a heating plate housed in a metal casing with removable cover. The temperature is controlled by means of a thermostat. For increased safety the SKF hot plate is equipped with overheating protection. This will automatically switch off the power in case of thermostat failure.

Professional heating device especially designed for pre-heating small bearings prior to mounting

• Thermostat controlled
• Adjustable temperature range of 50 - 200 °C (120 - 390 °F)
• Protective cover to avoid contamination during heating

Technical data

• Designation:
  • 729659 C - 230VAC (50/60Hz)
• Power: 1,000 W
• Temperature range: 50°-200°C (120°-390°F)
• Plate dimensions (l x w): 380 x 178 mm (15 x 7 in)
• Height of cover: 50 mm (2 in)
• Overall dimensions (l x w x d): 400 x 240 x 130 mm (16 x 10 x 5 in)
• Weight: 4.7 kg (10 lb)
• Length of connection cable: 2 metres (6.6 ft) (earth connection required)
