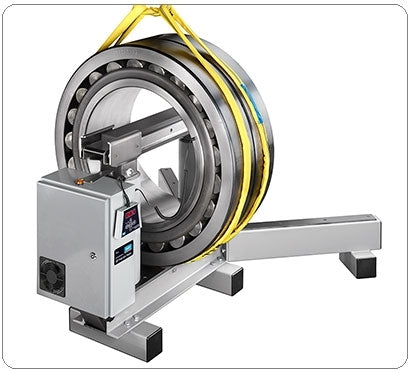

SKF Extra Large Induction Heater TIH L series

The SKF Induction Heater TIH L series are intended for heating large size rolling bearings and components forming a closed circuit such as housings, gear wheels and couplings.

With advanced power electronics and a dual coil design, the TIH L series can heat large bearings up to 1 200 kg (2 600 lbs), using just 20 kVA of electrical power. This is a power saving of almost 50% compared to traditional induction heaters. Unusually for a bearing heater for large bearings, the TIH L series can be supplied in medium and low voltage versions. Available with two different operating areas, the TIH L series suits most bearings up to 1 200 kg.

• High heater efficiency saves energy costs and helps to reduce CO2emissions.
• Bearings and work pieces can be heated vertically or horizontally. This gives users real flexibility in using TIH L series heaters.
• Easy bearing loading thanks to an ergonomically designed sliding yoke.
• No need to use valuable crane time to lift the yoke.
• Bearing support arms can be used when heating bearings horizontally. This improves handling and improves user safety
• Supplied with a remote control panel, detachable from the heater. This improves ease of use and helps reduce the risk of contact with the hot bearing during operation.
• Compact design allows the TIH L series heaters to be easily transported by forklift
• Temperature mode pre-set at 110 °C (230 °F), helps prevent bearing overheating
• Time mode for heating components other than bearings, allows flexibility in application
• 2-step power setting is ideal for use with sensitive bearings, helping to ensure that the bearing’s rolling elements don’t lock up during heating
• Automatic demagnetization
• 3 year warranty
