SKF Grease pumps (18, 50 or 180 kg)

Meeting all your grease lubricator needs

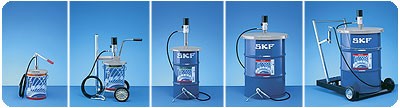

Full range of manual and air-operated grease pumps are designed to empty standard 18, 50 or 180 kg (39, 110 or 400 lb) grease drums. Can be connected directly on the greasing points, also suitable for centralised lubricating grease systems. SKF grease pumps have a maximum pressure of 50 and 42 MPa (7,250 and 6,090 psi) respectively. Tested and approved for SKF greases. Easy to install and ready for use since pumps are supplied with all necessary items including 3 500 mm (137.8 in) of tubing.

• Full range; pumps available for 18, 50 or 180 kg (39, 110 or 400 lb) drums
• High pressure; maximum of 50 MPa (7,250 psi)
• Easy to install; all necessary items as well as 3.500 mm (137.8 in) of tubing are included
• Reliable; tested and approved for SKF greases
• Can be used in combination with SKF bearing packer VKN 550

Technical data

• LAGG 18M - Grease pump for 18 kg drums
  • Pumping: Manual
  • Max. pressure: 50 MPa (7,250 psi)
  • SKF Drum: 18 kg (39.6 lb)
  • Inner diameter: 265-285 mm (10.4-11.2 in)
  • Stationary
• LAGG 18AE - Mobile grease pump for 18 kg drums
  • Pumping: Air-pressure
  • Max. pressure: 42 MPa (6,090 psi)
  • SKF Drum: 18 kg (39.6 lb)
  • Inner diameter: 265-285 mm (10.4-11.2 in)
  • Mobile
• LAGG 50AE - Grease pump for 50 kg drums
  • Pumping: Air-pressure
  • Max. pressure: 42 MPa (6,090 psi)
  • SKF Drum: 50 kg (110 lb)
  • Inner diameter: 350-385 mm (13.8-15.2 in)
  • Stationary
• LAGT 180 - Trolley for drums up to 200 kg
