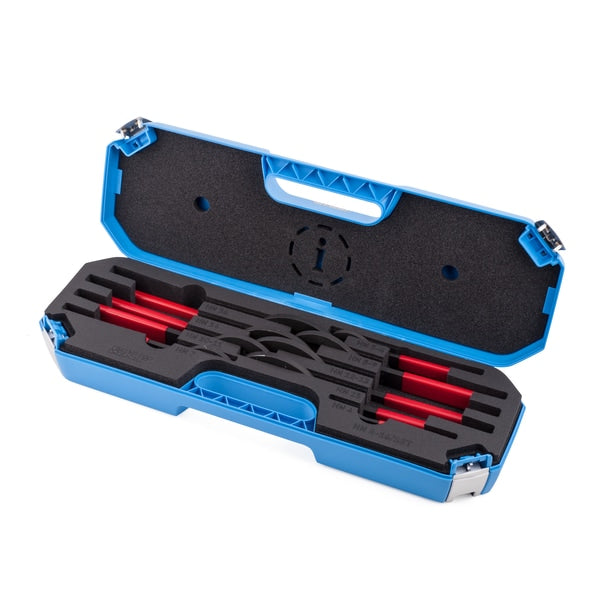

SKF HN 4-16 Hookspanner Set
$585.64
SKU: SKF-HN 4-16/SET
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Most popular hook spanner sizes combined in one set
The SKF-HN 4-16/SET hook spanner set contains 9 spanners based on the DIN 1810 standard suitable for tightening and loosening lock nut sizes 4 up to 16. The hook spanners are designed for use with SKF KM nuts as well as any other KM nuts conforming to the DIN 981 standard. Additionally, they are suitable for use with N, AN, KMK, KMFE and KMT as well as nuts manufactured according to the DIN 1804 standard.
-
Contains hook spanners HN 4 up and including HN 16 from the SKF HN series 9 different spanner sizes for the most popular lock nut sizes
-
Packed in a handy, high quality tool holding pouch for easy storage
-
Easy selection of the right size spanner
Technical data HN series:
-
Material: Special hardened steel
-
Material handle: PVC
-
Suitable For:
-
many SKF nuts
-
For all KM nuts according to DIN 981
-
For all nuts according to DIN 1804
-
For nuts from KM4 to KM16
-
| DIN 1810 | Diameter | Working length |
Thickness | Weight | |
| mm | mm | mm | mm | g | |
| HN 4 | Ø30 - Ø32 | 30 - 32 | 120 | 4 | 48 |
| HN 5-6 | 38 - 45 | 150 | 5 | 96 | |
| HN 7 | Ø52 - Ø55 | 52 - 55 | 180 | 6 | 170 |
| HN 8-9 | 58 - 65 | 210 | 7 | 270 | |
| HN 10-11 | Ø68 - Ø75 | 68 - 75 | 210 | 7 | 270 |
| HN 12-13 | Ø80 - Ø90 | 80 - 90 | 240 | 8 | 420 |
| HN 14 | 92 | 240 | 8 | 415 | |
| HN 15 | Ø95 - Ø100 | 95 -100 | 240 | 8 | 405 |
| HN 16 | 105 | 240 | 8 | 412 |
| DIN 1810 | Diameter | Working length |
Thickness | Weight | |
| mm | in | in | in | lb | |
| HN 4 | Ø30 - Ø32 | 1.2 - 1.3 | 4.7 | 0.16 | 0.11 |
| HN 5-6 | 1.5 - 1.8 | 5.9 | 0.20 | 0.21 | |
| HN 7 | Ø52 - Ø55 | 2.0 - 2.2 | 7.1 | 0.24 | 0.37 |
| HN 8-9 | 2.3 - 2.6 | 8.3 | 0.28 | 0.60 | |
| HN 10-11 | Ø68 - Ø75 | 2.7 - 3 | 8.3 | 0.28 | 0.60 |
| HN 12-13 | Ø80 - Ø90 | 3.1 - 3.5 | 9.4 | 0.31 | 0.93 |
| HN 14 | 3.6 | 9.4 | 0.31 | 0.91 | |
| HN 15 | Ø95 - Ø100 | 3.7 - 3.9 | 9.4 | 0.31 | 0.89 |
| HN 16 | 4.1 | 9.4 | 0.31 | 0.91 |
| Selection chart HN 4-16/SET | |||||||
| Suitable for SKF nuts of series: | |||||||
| KM | N | AN | KMK | KMFE | KMT | DIN 1804 (M) | |
| HN 4 | 4 | 4 | 4 | 4 | 1, 2 |
M14x1.5, M16x1.5 |
|
| HN 5-6 | 5, 6 |
5, 6 |
5, 6 |
5, 6 |
3, 4, 5 |
M22x1.5, M24x1.5, M26x1.5 |
|
| HN 7 | 7 | 7 | 7 | 7 | 6, 7 |
M32x1.5, M35x1.5 |
|
| HN 8-9 | 8, 9 |
8, 9 | 8, 9 |
8, 9 |
8 | M38x1.5, M40x1.5, M42x1.5 |
|
| HN10-11 | 10, 11 |
10, 11 |
10, 11 |
10, 11 |
9, 10 |
M45x1.5, M48x1.5, M50x1.5 |
|
| HN 12-13 | 12, 13 |
12, 13 |
12, 13 |
12, 13 |
11, 12 |
M52x1.5, M55x1.5, M58x1.5, M60x1.5 |
|
| HN 14 | 14 | 14 | 14 | 14 | |||
| HN 15 | 15 | 15 | 15 | 15 | 13, 14 |
M62x1.5, M65x1.5, M68x1.5, M70x1.5 |
|
| HN 16 | 16 | 16 | 16 | 16 | 15 | ||
