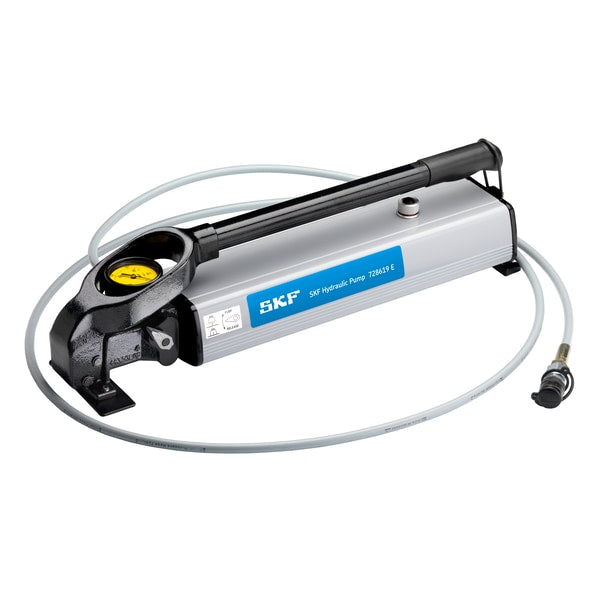

SKF Hydraulic Pump 728619 E

150 MPa - (21,750 psi)

The 728619E is a two-stage pump suitable for use with SKF Supergrip bolts and for the mounting and dismounting of bearings or components where a maximum pressure of 150 MPa (21,750 psi) is required. The pump is supplied with a 3 000 mm (118 in) pressure hose, quick connect coupling and mating nipple and pressure gauge. The pump is filled with SKF mounting fluid LHMF 300, is supplied with an extra litre and is protected in a sturdy metal case.

• Two stage pressure pumping
• Extra litre of mounting fluid
• Packed in a sturdy protective metal case

Applications

• SKF Supergrip bolts
• All other oil injection applications where the maximum pressure is 150 MPa (21,750 psi)

Technical data

• Maximum pressure: 150 MPa (21,750 psi)
• Volume/stroke 1st Stage : 20 cm³ below 2,5 MPa (1.2 in³ below 362 psi)
• Volume/stroke 2nd Stage: 1.00 cm³ above 2.5 MPa (0.06 in³ above 362 psi)
• Oil container capacity: 2,550 cm³ (155 in³)
• Length of pressure hose 2,400 mm (146.5 in)
• Connection nipple: G 1/4 quick connection
• Weight: 11.4 kg (25 lb)
