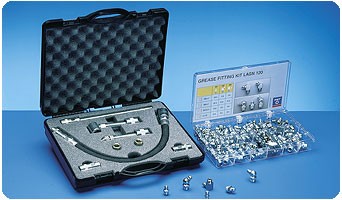

SKF Lubrication accessory sets

The SKF LAGS 8 Grease nozzle kit provides the user with practical accessories for daily lubrication such as connectors, couplings and nozzles most widely used in the industry. To meet all of your needs for grease lubrication points, SKF has developed a grease fitting kit, LAGN 120, which contains a full range of 120 standardised conical grease fittings made of precision steel, zinc plated, hardened and blue chromated.

• Includes the most widely used accessories in the industry
• Upgrade the 1077600 grease gun with the LAGS 8 Grease nozzle kit
• Replace damaged grease fittings

Contents/technical data

• LAGS 8
  • Contents:
    • Straight pipe 180 mm and nozzle
    • Hose
    • Tube
    • Tube with nose piece and plastic transparent cover
    • Nipple M10x1-G1/8
    • Nipple M10x1-1/8-27NPS
    • Nozzle (2x)
  • Maximum working pressure : 40 MPa (5,800 psi)
  • Minimum bursting pressure : 80 MPa (11,600 psi)
• LAGN 120
  • Grease nipple - Quantity included:
    • M6x1 straight - 30x
    • M8x1 straight - 20x
    • M10x1 straight - 10x
    • G 1/8 straight - 10x
    • M6x1 45° - 5x
    • M8x1 45° - 10x
    • M10x1 45° - 5x
    • G1/8 45° - 5x
    • M6x1 90° - 5x
    • M8x1 90° - 10x
    • M10x1 90° - 5x
    • G1/8 90° - 5x
  • Maximum working pressure: 40 MPa (5,800 psi)
  • Minimum. burst pressure : 80 MPa (11,600 psi)
  • Standard: DIN 71412
  • Material: Hardened steel
