SKF Industrial Division

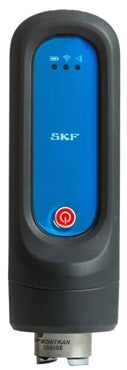

SKF PULSE Bluetooth Vibration Sensor
$4,763.73
$6,539.63
SKU: SKF-CMDT-391-K-SL
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns

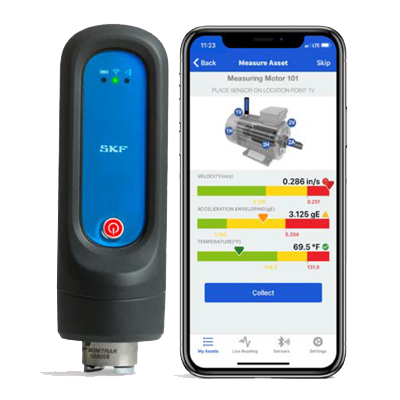

The SKF Pulse combines an easy-to-use, portable sensor with a free iOS app to monitor machine health and quickly identify machinery issues and improve reliability before operations are impacted. Acting as a smart vibration tool, the sensor transmits wirelessly to the SKF Pulse app, instantly providing intuitive machine diagnostics.
- Easy-to-use, portable
- Easy start-up
- Velocity, acceleration and temperature measurements
- Bluetooth® communication with iOS devices
- Rugged, industrial design: drop test at 6 ft (1.8 m), water and dust-resistant (IP65)
Download the SKF Pulse app: SKF Pulse on the App Store
What's Included:
- Charger
- Magnet
- Rubber boot
- 2-year Calibration certificate
Specifications
Regulatory specifications
| IP rating | IP 65, dust and water ingress protection testing standard |
|---|---|
| Radio approvals | Europe (CE), USA (FCC), Canada (IC) |
| CE mark | CE approved |
Measurement range
| Velocity | 10 Hz to 1 kHz up to 2.17 in/s (55mm/s) |
|---|---|
| Recommended speed range | 600 – 3600 rpm |
| Bearing condition | SKF patented envelope acceleration up to 20 gE |
FFT
| Maximum frequency | Velocity 1 kHz, enveloped acceleration 2 kHz |
|---|---|
| Lines of resolution | Velocity 400, enveloped acceleration 800 |
| Detection type | Velocity RMS, enveloped acceleration true peak to peak |
| Temperature | Capable of measuring outwith standard temperatures range up to 212°F (100°C) for short periods |
Power
| Main power | Rechargeable lithium battery, 3.7 V DC, 0.14 A |
|---|---|
| Battery lifetime | Eight hours with normal usage |
| Manual power off | Press and hold power button for 3+ seconds |
| Auto power off | After 15 minutes of no activity |
| Mains supply voltage, charger | Varies up to ±10% of the nominal voltage; transient overvoltage category II; pollution degree 2 |
| Charger | Input 5 V DC ±10%, 1 A |
| AC adapter | Input 100 to 240 V DC, 0.4 A, 47 to 63 Hz
Output 5 V DC, 1.6 A |
Environmental
| Storage temperature | -5 to +115 °F (-20 to +45 °C) for less than one month
-5 to +95 °F (-20 to +35 °C) for less than six months |
|---|---|
| Operating temperature | 32 to +105 °F (0 to +40 °C) for charging battery
-5 to +140 °F (-20 to +60 °C) for discharging |
| Operating temperature | 32 to +105 °F (0 to +40 °C) charger |
| Altitude | Up to 6,560 ft (2,000 m) |
| Humidity | 95% non-condensing |
Physical
| Case | Water and dust resistant (IP65) |
|---|---|
| Drop test | 6 ft (1.8 m) in accordance with MIL-STD-810G |
| Dimensions | 1.8 x 1.8 x 5.3 in (45 x 45 x 135 mm) |
| Weight | 7 oz (200 g) |
