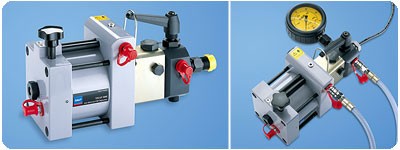

SKF THAP E Series - Air-Driven Hydraulic Pumps

30, 150 and 300 MPa - (4,350, 21,750 and 43,500 psi)

The THAP E air-driven pumps are available in three different pressure versions. They are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings. The pumps can also be supplied in complete sets which consists of pump, pressure gauge, adapter block, high pressure pipe and connection nipples.

• Time savings compared to hand operated pumps
• Continuous supply of oil
• Sturdy storage boxes Low, medium and high pressure units

Applications

• SKF OK-Couplings
• Mounting and dismounting bearings
• Dismounting large pressure joints like railway wheels, couplings, flywheels and gear wheels and so on
• Mounting and dismounting ship propellers, rudder pintles and so on

Technical data

• THAP 030E
  • Nominal hydraulic pressure 30 MPa ( 4,350 psi)
  • Pressure ratio 1 : 59
  • Maximum air pressure 0.7 MPa (101.5 psi)
  • Volume/stroke 6.63 cm3 (0.40 in3)
  • Oil outlet G 3/4 Length 380 mm (15 in)
  • Height 190 mm (7.5 in)
  • Width 120 mm (4.7 in)
  • Weight 10 kg (22 lb)
• THAP 030E/SET
  • Complete set consisting of pump, high pressure hose and connecting nipples.
  • Weight 21 kg (46 lb)
• THAP 150E
  • Nominal hydraulic pressure 150 MPa (21,750 psi)
  • Pressure ratio 1 : 252
  • Maximum air pressure 0,7 MPa (101.5 psi)
  • Volume/stroke 1.09 cm³ (0.06 in³)
  • Oil outlet G 3/4
  • Length 330 mm (13 in)
  • Height 190 mm (7.5 in)
  • Width 120 mm (4.7 in)
  • Weight 8 kg (17.6 lb)
• THAP 150E/SET
  • Complete set consisting of pump, pressure gauge, adapter block, high pressure hose and connecting nipples
  • Weight 22.5 kg (50 lb)
• THAP 300E Nominal hydraulic pressure 300 MPa (43,500 psi)
  • Pressure ratio 1 : 500
  • Maximum air pressure 0.7 MPa (101.5 psi)
  • Volume/stroke 0.83 cm3 (0.05 in3)
  • Oil outlet G 3/4 Length 405 mm (16 in) Height 202 mm (8 in)
  • Width 171 mm (6.7 in)
  • Weight 13 kg (28.6 lb)
• THAP 300E/SET
  • Complete set consisting of pump, pressure gauge, high pressure pipe
  • Weight 24.5 kg (54 lb)
