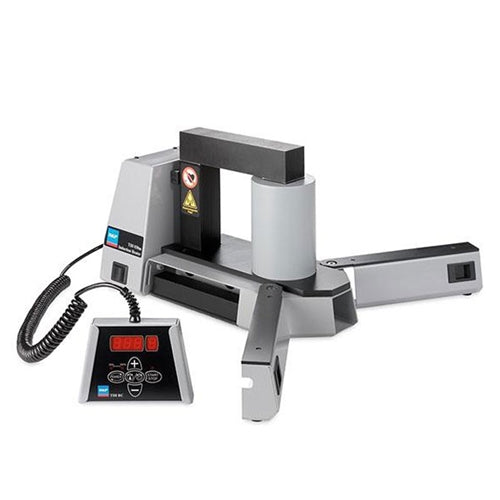

SKF TIH 030m/110V Portable Induction Heater 110VAC
SKF TIH 030m/110V Small Induction Heater
Small induction heater with a 40 kg (88 lb) bearing heating capacity – 100–110 V / 50–60 Hz.
- Compact, lightweight design; just 20.9 kg (46.0 lb), facilitating portability
- 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
- Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
- Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
- Automatic demagnetisation
- This induction heating system is warranted for 3 years
The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact, lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb). The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings. The induction heating system is supplied standard with three yokes and is available in two executions: 230 V/50–60 Hz and 100–110 V/50–60 Hz.
Specifications
| Designation | TIH 030m/110V |
|---|---|
| SKF m20 performance | 28 kg (61.7 lb) |
| Voltage | TIH 030m/110V: 100 – 110 V, 50 – 60 Hz
TIH 030m/230V: 230 V, 50 – 60 Hz |
| Maximum power consumption | 2.0 kVA |
| Maximum temperature (approx.) | 400 °C (750 °F) |
| Thermometer mode | Yes |
| Bearing mode | Yes |
| Power setting | 2-step: 50% or 100% |
| Demagnetisation according to SKF norms (automatic) | Yes (< 2 A/cm) |
| Can heat sealed bearings | Yes |
| Can heat pre-greased bearings | Yes |
| Error guiding codes | Yes |
| Thermal overload protection | Yes |
| Control panel | Control panel and LED display integrated in remote control |
| Operating area (w × h) | 100 × 135 mm (3.9 × 5.3 in.) |
| Coil diameter | 95 mm (3.7 in.) |
| Core cross section | 45 × 45 mm (1.7 × 1.7 in.) |
| Bearing support arms | Yes, foldable |
| Yoke storage | Yes, internal, integrated in foldable bearing support arms |
| Cooling fan | No |
| Swivel arm | No |
| Housing material | Steel and glass-filled polyamide |
| Dimensions (w × d × h) | 450 × 195 × 210 mm (17.7 × 7.6 × 8.2 in.) |
| Total weight, including yokes | 20.9 kg (46.0 lb) |
| Warranty period | 3 years |
| Maximum weight | 40 kg (88 lb) |
|---|---|
| Bore diameter | 20 – 300 mm (0.8 – 11.8 in.) |
| Range | 0 – 250 °C (32 – 482 °F) |
|---|---|
| Magnetic probe | Yes, K-type |
| Accuracy (electronics) | ± 2 °C (± 3.6 °F) |
| Range | 0 – 60 minutes |
|---|---|
| Accuracy | ± 0.01 s |
| 45 × 45 × 215 mm (1.7 × 1.7 × 8.4 in.) | For bearings with bore diameter of 65 mm (2.6 in.) and larger |
|---|---|
| 28 × 28 × 215 mm (1.1 × 1.1 × 8.4 in.) | For bearings with bore diameter of 40 mm (1.6 in.) and larger |
| 14 × 14 × 215 mm (0.5 × 0.5 × 8.4 in.) | For bearings with bore diameter of 20 mm (0.8 in.) and larger |
