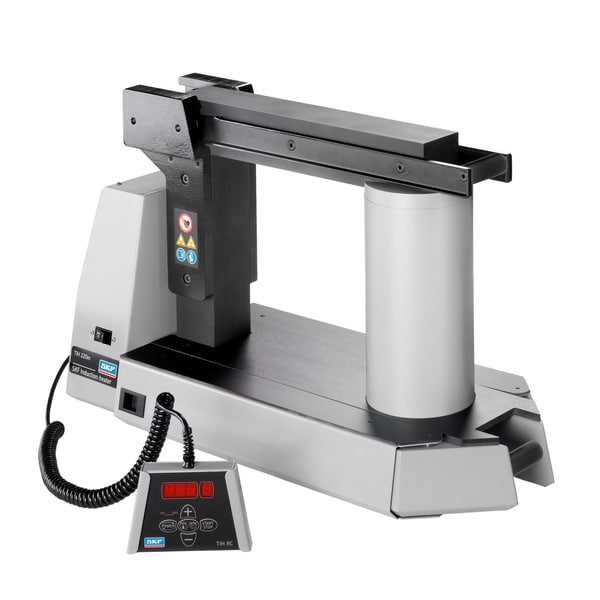

SKF-TIH 220M/LV Industrial Induction Heater
$16,960.28
$36,040.59
SKU: SKF-TIH-220M-LV
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
Large bearing heater with high heating capacity of up to 300 kg bearing
The SKF large induction heater TIH 220m is a reliable and robust induction heater from the SKF TIH...m range suitable for heating bearings up to a maximum weight of 300 kg (660 lbs) and solid components up to a maximum weight of 150 kg (330 lbs). Advanced design of the power electronics including current and overheating control, combined with user friendly features such as sliding arms and remote control are standard to the TIH...m range.
Maximum efficiency is achieved by placing the induction coil outside the heater's housing, in the centre of the bearing, resulting in shorter heating time and lower energy consumption. The LED operating display and control panel are integrated in a remote control, which makes the heater easy to use. To suit different operating voltages worldwide, the TIH 220m is available in different voltage variants.
Features:
- Capable of heating a 220 kg (460 lbs) bearing in just 20 minutes, saving time and energy
- Supplied standard with two yokes, allowing bearings with a bore diameter from 60 mm (2,3 in) up to a maximum weight of 300 kg (660 lbs) to be heated
- 2-step power setting and smaller yoke facilitates efficient heating of smaller bearings with a lower power consumption Temperature mode pre-set at 110 °C (230 °F), helps prevent bearing overheating
- Automatic demagnetisation
- 3 year warranty
SKF m20 concept
"m20" represents the weight (kg) of the heaviest SRB 231 bearing which can be heated from 20 to 110 °C (68 to 230 °F) in 20 minutes. This defines the heater's power output instead of its power consumption.
Specifications
Technical
| Designation | TIH 220M/LV, TIH 220M/MV |
|---|---|
| SKF m20 performance | 220 kg (460 lbs) |
| Voltage, V/Hz | TIH 220M/LV: 200-230V/50-60Hz
TIH 220M/MV: 400-460V/50-60Hz |
Work piece
| Maximum weight | 300 kg (661.4 lb) |
|---|---|
| Maximum bore diameter | 60 - 600 mm (2.3 - 23.6 in) |
Temperature control
| Range | 0 - 250 °C (32 - 482 °F) |
|---|---|
| Magnetic probe | Yes, K-type |
| Accuracy (electronics) | ± 2 °C (± 3.6 °F) |
Time control
| Range | 0 - 60 minutes |
|---|---|
| Accuracy | ± 0.01 sec. |
Features and protection
| Maximum temperature (approx.) | 400 °C (750 °F) |
|---|---|
| Thermometer mode | Yes |
| Bearing mode (pre-set at 110 °C/230 °F) | Yes |
| Power reduction | 2-step; 50 - 100% |
| Demagnetisation according to SKF norms (automatic) | Yes (<2 A/cm) |
| Can heat sealed bearings | Yes |
| Can heat pre-greased bearings | Yes |
| Error guiding codes | Yes |
| Thermal overload protection | Yes |
| Maximum magnetic flux | 1.55 T |
| Control panel | Keyboard with LED in remote control |
Dimensions and yokes
| Operating area | (w x h): 250 x 255 mm (9.8 x 10 in) |
|---|---|
| Coil diameter | 140 mm (5.5 in) |
| Dimensions (w x d x h) | 750 x 290 x 440 mm (29.5 x 11.4 x 17.3 in) |
| Total weight, including yokes | 86 kg (189 lbs) |
| Maximum power consumption | 10.0-11.5 kVA (400-460V) |
| Number of standard yokes | 2 |
| Standard yokes | 70 x 70 x 430 mm (2.8 x 2.8 x 16.9 in), for heating bearings with bore diameter of 100 mm (3.9 in) and larger
40 x 40 x 430 mm (1.5 x 1.5 x 16.9 in), for heating bearings with bore diameter of 60 mm (1.6 in) and larger |
| Core cross section | 70 x 70 mm (2.8 x 2.8 in) |
| Yoke storage | Yes |
| Sliding arm | Yes, 70 x 70 x 430 mm (2.8 x 2.8 x 16.9 in) yoke only |
| Swivel arm | No |
| Cooling fan | No |
| Housing material | Steel and glass fibre filled polyamide |
| Warranty period | 3 years |
