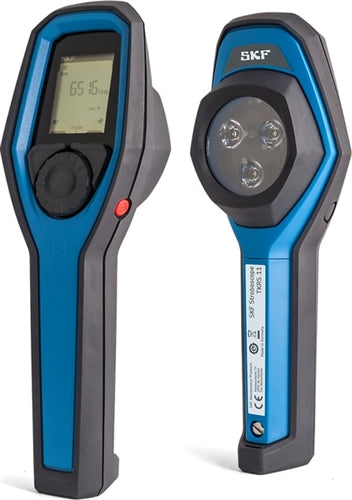

SKF TKRS 11 Hand-Held LED Stroboscope
- High luminescence with three ultra-bright LEDs
- Black and White LCD Display
- Quick speed selection with rotary button
- Tripod mount for stationary inspection
- Robust and ergonomical design for portable use in industrial environments
High-performance, hand-held stroboscopes for visual inspection
SKF offers a wide range of portable TKRS stroboscopes for visual inspection of running machines in challenging industrial environments. These portable tools provide early detection of abnormalities to help schedule maintenance tasks and reduce additional loads on rotating equipment in order to reach planned performance levels. Designed for ease of use, the four TKRS models offer from 3 to 118 ultra-bright LEDs. Each stroboscope features a large screen and multifunctional selector switch to help you quickly navigate to the correct menu. Brightness and performance levels are adjustable.
General benefits of TKRS series:
- Intuitive operation for fast and easy inspection jobs
- Ergonomic and robust design for portable usage in industrial environments
- Bright LEDs with long lifetime and continuous operation
- Tripod mount for stationary inspection
Applications and industries:
- General industry - Inspection of fans, gears, belts, chains, couplings, shafts, etc.
- Paper - Quality control
- Textile - Setup/Inspection of production processes, especially spindles and weaving patterns
- Printing - Quality control
- Test equipment - Analysis of materials and components during fast movements, including component behavior under vibration or resonance frequency tests
Specifications
| Designation | TKRS 11 |
|---|---|
| Light power | >2000 Lux at 3° flash duration and 0.3 m (12 in.) distance |
| Brightness (flash duration) | Adjustable, 0.2°–5.0° |
| Accuracy | ±0.02% (±1 digit / ±0.025 µs) whichever is greater |
| Laser speed measurement | No |
| Phase shift | Yes |
| Run time ca. | ca. 5:30 h @ 1° (100% display brightness)
ca. 7:45 h @ 0.2° (20% display brightness) |
| Display | Black and White LCD |
| Power source | 3 x AA batteries (included) |
| Instrument dimensions | 225 × 78 × 50 mm (8.9 x 3 x 2 in.) |
| Instrument weight (incl. batteries) | 0.29 kg (0.64 lb) |
| Case dimensions | 260 x 180 x 85 mm (10.2 x 7.1 x 3.3 in.) |
| Total weight (case + instrument) | 0.78 kg (1.7 lb) |
