SKF TKSA 11 Low Cost Shaft Alignment Kit
$3,390.46
$7,204.73
SKU: SKF-TKSA-11
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads

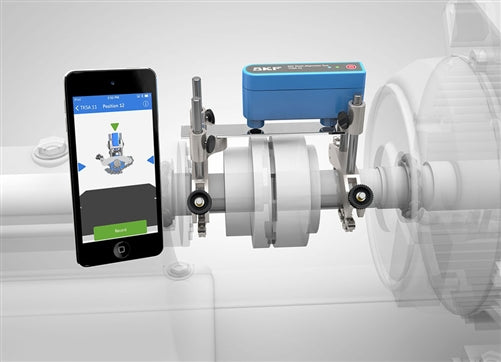

The SKF TKSA 11 heralds a new generation of shaft alignment tools. Using mobile devices, the instrument intuitively guides the user through the whole alignment process. With a focus on the core alignment tasks, the TKSA 11 is designed to be a very easy-to-use instrument that results in accurate alignment and is especially suitable for entry level shaft alignment. The Display Unit is Not Included.
The SKF TKSA 11 is the first instrument on the market that uses inductive proximity sensors, enabling accurate and reliable shaft alignment to be affordable for every budget.
Features and Benefits
- Live view of the instrument and motor position makes the measurement and horizontal alignment intuitive and easy
- The TKSA 11 App offers a fully functional demonstration mode allowing the complete alignment process to be experienced without the need to purchase the TKSA 11
- The TKSA 11 is designed to give a fast return on its investment and is also affordable for almost every budget
- Mobile devices allow high resolution graphics, intuitive usage, automatic software updates and display unit choice
- By using inductive proximity sensors, the measurement is no longer affected by bright sunlight, influence of backlash is reduced and the instrument becomes more robust; thus enabling the TKSA 11 to deliver highly accurate and reliable alignment
- Automatic alignment reports give a complete overview of the alignment process and results. Reports can easily be shared via email or cloud service
The TKSA 11 App is available for free in the AppStore. Just search for
“SKF TKSA 11” or follow the QR code and try the alignment process with
the fully functional demonstration mode.
Specifications
Technical data
| Designation | TKSA 11 |
|---|---|
| Sensors and communication | 2x inductive proximity sensors; electronic inclinometer; Bluetooth 4.0 LE |
| System measuring distance | 0 to 185 mm (0 to 7.3 in) between brackets, three reference bars included |
| Measuring errors / Displayed resolution | Less than 2% / 10 µm (0.4 mils) |
| Compatible operating devices * | Ipod Touch 5th generation recommended,
Iphone 4S, Iphone 5, Ipad Mini, Ipad 3rd generation or above Galaxy S4 (recommended phone), Galaxy Tab Active (recommended tablet), Smart-Ex 01 (Smart-Ex 01) |
| Operating system requirements | Apple iOS 7 and above or Android OS 4.4.2 and above with hardware support for Bluetooth 4.0 / Bluetooth smart and Open GL 2.0 |
| Software/App update | "Shaft Alignment Tool TKSA 11" via Apple AppStore or Google Play Store |
| Shaft diameters | 20 to 160 mm (0.8 to 6.3 in), up to 320 mm (12.6 in) with optional extension chains |
| Max. recommended coupling height | 55 mm (2.2 in), up to 175 mm (6.8 in) with optional extension rods |
| Alignment measurement | three position measurement (9-12-3) |
| Alignment correction | vertical with shims, horizontal with live view |
| Alignment report | Automatic PDF report |
| MU battery | up to 18 hours continuous operation (1900 mAh rechargeable Lithium Polymer battery) |
| Carrying case dimensions | 360 x 110 x 260 mm (14.2 x 4.3 x 10.2 in.) |
| Total weight (incl. case) | 2.1 kg (4.6 lbs) |
| Operating temperature | 0 °C to +45 °C (32 to 113 °F) |
| IP rating | IP54 for the measuring unit (IP67 for the probes) |
| Calibration certificate | Supplied with 2 years validity |
| Warranty | 1 year standard warranty |
No display device included
