SKF TKSA 71 Professional Wireless Laser Alignment System Kit

SKF TKSA 71 Professional Wireless Laser Shaft Alignment Kit

Designed for professional alignment in harsh industrial environments, the TKSA 71 complements SKF’s offering with a high-end shaft alignment tool. The instrument is very versatile with ultra-compact measuring units for use in extremely narrow spaces. Its dedicated software applications enable different types of alignments, including horizontal and vertical shafts, spacer shafts and machine trains. Superior alignment performance and long-term industrial durability are achieved with an innovative instrument design that offers high measurement accuracy and excellent protection against dust and water in harsh environments

Applications Include:

Shaft alignment - Easy and intuitive alignments of horizontal shafts with additional features including automatic measurement, minimal 40° total rotation, 9-12-3 guidance and alignment customisation with target values.

Vertical shaft alignment - Easy and intuitive alignment of vertical shaft machines with shimming support for different bolt configurations.

Machine train shaft alignment - Enables operator to align three connected machines, giving a complete overview of machine train alignment and allowing the operator to select stationary feet.

Soft foot - Assists technician in verifying that machine is standing evenly on all four feet. The app supports the operator identifying and correcting a soft foot.

Spacer shaft alignment - Accommodates special requirements of spacer shafts and facilitates the alignment process.

Values - Allows the shaft alignment tool to be used as digital dial gauges; operators can record absolute, zeroed and halved readings to perform customized alignments with manual calculations

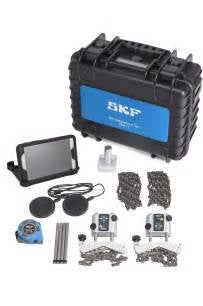

Kit Includes:

2 TKSA 71 measuring units (M & S)
2 Standard V-brackets with chains 480 mm (18.9 in.), rods 80 mm (3.1 in.)
and magnets
2 Extensions chains 1m (3.3 ft.)
1 USB to Micro USB split charging cable
2 Wireless charging pads
1 Measuring tape 5 m (16.4 ft.)
1 Printed certificate of calibration and conformance
1 Printed quick start guide (English)
4 Extension rods 120 mm (4.7 in.)
1 Rugged carrying case (IP67), 365 × 295 × 170 mm (14.4 × 11.6 × 6.7 in.)

Specifications:

Sensors and communication: 20 mm (0.8 in.) 2nd gen PSD with red line laser Class 2; electronic inclinometer ±0,1°; Bluetooth 4.0 LE
System measuring distance: 0.04 to 10 m (0.13 to 32.8 ft)
Measuring errors / displayed resolution: <1% ±10 µm / 10 µm (0.1 mil)
Compatible operating devices: TKSA DISPLAY, Galaxy Tab Active and iPad mini recommended, iPad 3rd generation,
iPod touch 5th generation, iPhone 4S, Galaxy S4 or above (all not included)
Software / App update: Apple App Store or on Google Play Store
Shaft diameters: 20 to 150 mm diameter (0.8 to 5.9 in.), up to 450 mm (17.7 in.) with included extension chains
Max. recommended coupling height: 45 mm (1.8 in.) with standard rods, plus 120 mm (4.7 in.) per set of extension rods
Alignment measurement: 3 position measurement with guided 9–12–3 positions, free measurement (min. 40° total rotation), automatic measurement, disturbance compensation, target alignment values
Alignment correction: Vertical and horizontal machine position correction
Extra features: Guided alignment measurements, 3-D live view, screen flip, comprehensive automatic PDF reports
IP rating: IP67
Calibration certificate: Supplied with 2 years validity
Warranty: 2 years standard warranty
Size: 14.4 × 11.6 × 6.7 in.
Shipping Weight: 10 lbs
SKF Warranty: 2 years
