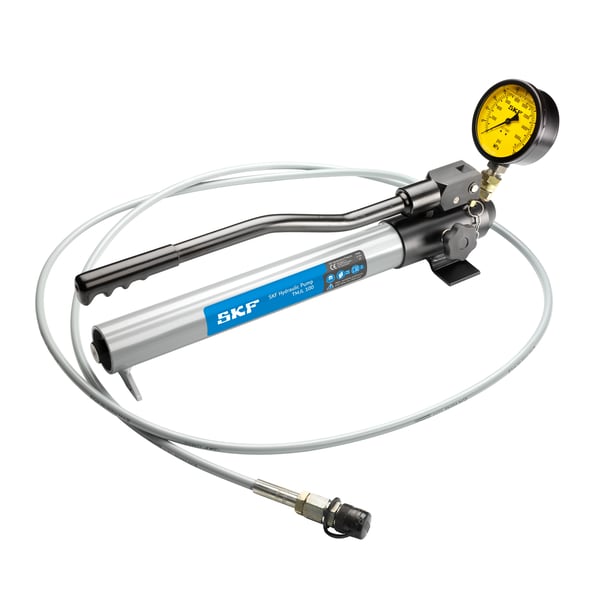

SKF TMJL 100 Hydraulic Pump

Large oil container 100 MPa - (14,500 psi) hydraulic nut pump

The TMJL 100 pump is suitable for use with hydraulic nuts (smaller than or equal to HMV 92E) and for bearing install or removal or components where a maximum pressure of 100 MPa (14,500 psi) is required. The pump is supplied with 3000 mm (118 in) pressure hose, quick connect coupling and mating nipple, and pressure gauge. The pump is filled with SKF mounting fluid LHMF 300 and is supplied with an extra liter of fluid and has a greatly increased oil container capacity over the 729124 (800 cm³ - 48 in³).

• Suitable for hydraulic nuts smaller than or equal to HMV 92E
• Suitable with SKF hydraulic assisted pullers TMHP series
• Extra liter of mounting fluid
• Packed in a sturdy protective case

Applications:

• SKF hydraulic nuts smaller than or equal to HMV 92E
• All other oil injection applications where the maximum pressure is 100 MPa (14,500 psi)
• SKF hydraulic assisted pullers TMHP series

Technical data:

• TMJL 100 Maximum pressure : 100 MPa (14,500 psi)
• Volume/stroke : 1,0 cm³ (0.06 in³)
• Oil container capacity : 800 cm³ (48 in³)
• Length of pressure hose : 3.000 mm (118 in)
• Connection nipple : G 1/4 quick connection
• Weight : 13 kg (29 lb)
