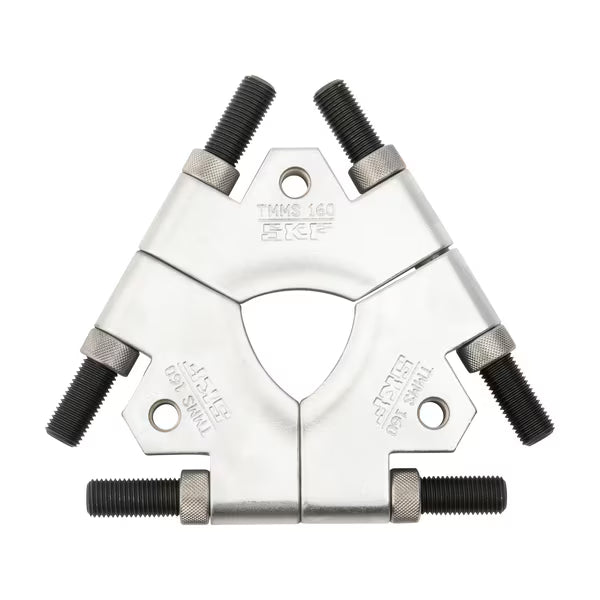

SKF TMMS 160 Tri-section pulling plate
$1,076.42
SKU: SKF-TMMS 160
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
Downloads
The tri-section pulling plate TMMS 160 is especially designed for use in combination with three-armed bearing pullers. The plate grips behind the inner ring of the bearing and prevents the pulling forces from being transmitted through the bearing, minimising the risk of bearing damage.
Specifications
Properties
| Recommended applications | For use with a puller in the dismounting of bearings, gears, pulleys and other industrial ring-shaped components in industrial, construction and agricultural applications with an interference fit on the shaft. Assists a three-armed puller where the claws cannot grip the component properly. |
|---|---|
| Pulling force (max) | 300 kN |
| Connecting thread | M16x2 |
| Dismounting force generation | By puller arms |
| Section plates provided with threaded pulling hole | Yes |
| Material | Alloy engineering steels, hardened and tempered |
| Coating | Rods black phosphated; plates and nuts zinc coated |
| Colour | Metallic and black |
Suitability
| Cylindrical seating (straight shaft) | Yes |
|---|---|
| Tapered seating (conical shaft) | Yes |
| Sleeve (adapter or withdrawal sleeve) | Yes |
| Blind arrangement (housing with shaft) | No |
| Housing | No |
Dimensions
| Width of grip, external | 50 – 160 mm |
|---|---|
| Pulling rod distance | 45 – 73 mm |
| Distance between threaded pulling holes | 52 mm |
| Plate width | 82 mm |
| Plate height | 30 mm |
| Plate tip width | 8 mm |
| Plate tip height | 4 mm |
Logistics
| Country of manufacture | Taiwan (COM code 49) |
|---|---|
| Product net weight | 6.03 kg |
| eClass code | 23-05-19-01 |
| UNSPSC code | 27111712 |
