SKF TMMX Series - Puller Protection Blanket

SKF Puller Protection Blankets - For safety during dismounting

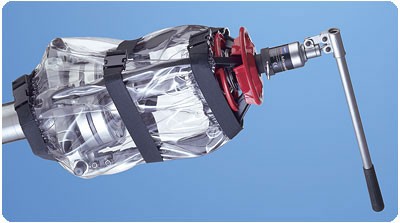

The SKF TMMX series puller protection blankets are especially designed to offer additional safety during bearing assembly or other component maintenance. The TMMX series blankets are simply wrapped around the puller and application after the puller has been placed on the application.

• Offers additional protection for the user during dismounting jobs
• The tough, transparent plastic allows the user to monitor the component and the puller during operation
• Suitable for use in combination with many pullers
• Especially designed to fit TMMA series

Technical Data:

• TMMX 210
  • Recommended Maximum Diameter: 210mm / 8.3in
  • Length: 750mm / 29.5in
  • Width: 420mm / 16.5in
  • Length of strap: 500mm / 19.7in
  • No. of strap: 3
  • Buckle size: 1in
• TMMX 280
  • Recommended Maximum Diameter: 280mm / 11.0in
  • Length: 970mm / 38.2in
  • Width: 480mm / 18.9in
  • Length of strap: 520mm / 20.5in
  • No. of strap: 3
  • Buckle size: 1in
• TMMX 350
  • Recommended Maximum Diameter: 350mm / 13.8in
  • Length: 1200mm / 47.2in
  • Width: 580mm / 22.8in
  • Length of strap: 770mm / 30.3in
  • No. of strap: 3
  • Buckle size: 1½in

TMMX series selection chart: 2-armed pullers

	TMMP		TMMR
	2x65	2x170	40F	60F	80F	120F	160F	200F	250F	350F
TMMX 210	-	o	-	-	-	o	o	-	-	-
TMMX 280	-	o	-	-	-	-	o	x	-	-
TMMX 350	-	-	-	-	-	-	-	-	x	-

x = Recommended   o = Possible   - = Not possible

TMMX series selection chart: 3-armed pullers

	TMMP			TMMP			TMHP	TMMA			TMHP
	3x185	3x230	3x300	6	10	15	8	3	5	8	15	30	50
TMMX 210	x	o	-	o	-	-	o	x	o	-	-	-	-
TMMX 280	-	x	o	-	o	-	x	o	x	o	-	-	-
TMMX 350	-	-	x	-	o	o	o	-	o	x	-	-	-

x = Recommended   o = Possible   - = Not possible
