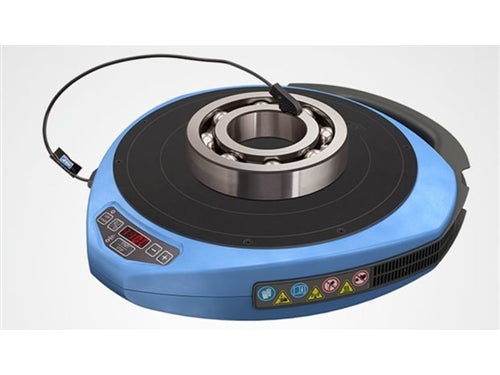

SKF TWIM 15/110V, Portable Induction Heater, 110V, 60Hz
A portable solution for bearing heating
The SKF portable induction heater TWIM 15 is designed to heat up roller bearings that are mounted with an interference fit onto a shaft. Heating the bearing causes it to expand, which eliminates the need to use force during installation. Generally, using the TWIM 15 to generate a 90 °C (162 °F) temperature difference between the bearing and shaft is sufficient to enable installation. In addition, the TWIM 15 can be used to heat other ring-shaped, metallic components, providing flexibility of use.
Utilizing electrical power, the TWIM 15 features glass-fiber, high-temperature-resistant plastic construction that allows a low temperature difference between the inner and outer rings of the bearing. This helps to reduce internal tensions that are generated due to excessive thermal expansion of the inner ring compared to the outer ring.
The unit has a user-friendly LED control panel that requires no special training and is simple to understand. The panel is used to regulate temperature and also indicates that the TWIM 15 is operational.
TWIM 15 advantages:
- Innovative heating of bearings
- Portable, compact and lightweight
- No support yokes required
- Automatic temperature monitoring
- Detects bearing size and heats appropriately
- Two power levels and three power configurations
- User-friendly LED control panel
- Quiet operation
The TWIM 15 portable induction heater package includes:
- Portable induction heater TWIM 15
- Magnetic K-type 400 mm temperature probe TWIM 15-3
- Temperature-resistant gloves TMBA G11
- Instructions for use
Specifications
| Designation | TWIM 15 |
|---|---|
| Max. bearing weight ¹⁾ | 20 kg (44 lb) |
| Min. bearing bore diameter | 20 mm (0.79 in.) |
| Max. bearing outer diameter | 320 mm (12.6 in.) |
| Max. bearing width | 85 mm (3.35 in.) |
| Performance examples (bearing, weight, temperature, time) | 6320: 7.1 kg (15.7 lb), 110 °C (230 °F), 5 min 20 s
22320 CC/W33: 12.8 kg (28.2 lb), 110 °C (230 °F), 12 min 35 s |
| Maximum power | TWIM 15/230 V: 2.3 kVA
TWIM 15/110 V: 1.8 kVA |
| Voltage | TWIM 15/230 V: 230 V, 50 Hz
TWIM 15/110 V: 110 V, 60 Hz |
| Max. current consumption | TWIM 15/230 V: 10 A
TWIM 15/110 V: 16 A |
| Temperature control | 20 – 200 °C (68 – 392 °F) |
| Demagnetization | The heater does not magnetize |
| Dimensions (w × d × h) | 450 × 500 × 100 mm (17.7 × 19.7 × 3.9 in.) |
| Total weight | 6.6 kg (14.6 lb) |
¹⁾ Depending on the geometry of the bearing, maximum heating temperature and power availability.
