SPM-ELS14 Electronic Stethoscope Kit

The SPM ELS14 Electronic Stethoscope is a sensitive and easy to use listening device for locating the source of mechanical noise. Bearing condition, gear and pump noise and the operation of relays and solenoids are just a few of the many sounds that may be identified, amplified, and assessed. Low, middle, and high filters can be selected in order to single out relevant frequencies. Headphones equipped with ear defenders effectively shut out ambient noise.

The ELS14 comes with an internal micro SD card and recording capabilities, enabling sounds to be played back from the device and also store sound files for future evaluation.

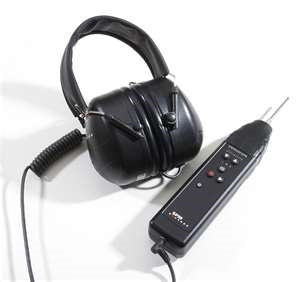

The ELS14-KIT comes complete with: ELS14 Electronic Stethoscope with micro SD card ELT10 Probe Set (60 and 290mm) EAR12 Headphones CAS09 Carry Case Listening to machine sounds in order to determine the probable source of abnormal noise is one of the most widely used methods in maintenance departments across all branches of industry.

Technical Specifications:

Frequency Range:	30 Hz to 20 kHz
Enclosure:	PC/ABS, IP55
Keypad:	Seated, snap action
LED Indicators:	Power On, Volume, Filter Mode, Recording, Low Battery
Volume Control:	Adjustable in 10 steps
Auto Power Off:	10 minutes after use
Filters:	Low, Middle, High
Recording:	MaxL 10 Files, up to 7.5 minutes per file
File Format:	WAV
Memory:	micro SDHC card
Output Connector:	3.5mm Stereo mini-plug for Headphones
Battery:	Two AA / R6 cells
Battery Life:	> 30 hours (continuous use)
Ambient Temperature range:	-10° to +60° C (14° to 140° F)
Dimensions:	213 x 38 x 48mm (8.4 x 1.5 x 1.9")
Weight:	295 g (10.4 oz)including batteries and 60mm probe
