SPM Instrument Inc.
SPM TRM100 External Vibration Sensor for VibChecker
$636.99
SKU: SPM-TRM100
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns

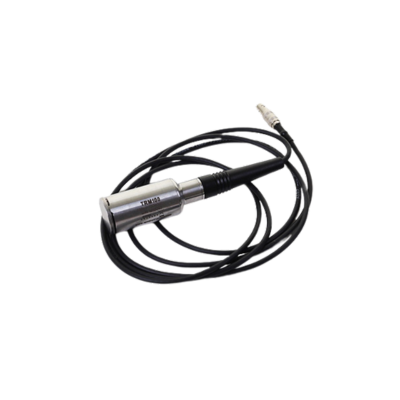

The vibration transducer TRM100 is an
accelerometer based on micro-electro-mechanical-systems (MEMS)
technologies, designed for vibration monitoring with the handheld
instrument, SPM VibChecker.
* Individual value given on the calibration chart.
The transducer has integral magnet
for attachment to plain, clean metal parts with the main sensitivity
axis pointing in the desired measuring direction. To get comparable
results, measuring points should be clearly marked, so that the
measurements can always be taken in the same spots.
Specifications:
| Nominal sensitivity, main axis | 10 mV/m/s2 * =100 mV/g |
| Transverse sensitivity | max 10% |
| Linear frequency range | 1 to 1000 Hz (±1dB) |
| Max. peak acceleration | 18g |
| Settling time | 3 seconds |
| Bias point | 10 to 12V (typical 11V) |
| Temperature Range |
-20° to +85° C (-4° to +185° F) |
| Power Requirements |
24 V /2 to 5 mA |
| Casing |
Acid proof Stainless Steel |
| Sealing | IP67 |
| Isolation | Case isolated, > 1 Mohm |
| Weight | 70 grams (2.5 oz) |
| Connector Type |
Lemo mini-coax |
* Individual value given on the calibration chart.
Contact us at (214) 238-0493 for full specifications.
