SPM Instrument Inc.
SPM VC200T/SET VibChecker Kit with Transducer and Case
$2,374.00
SKU: SPM-VC200T-SET
Request a Quote✓ Authorized Dealer
✓ 7-Day Returns
✓ Expert Support
Description
Specifications
Shipping & Returns
 |

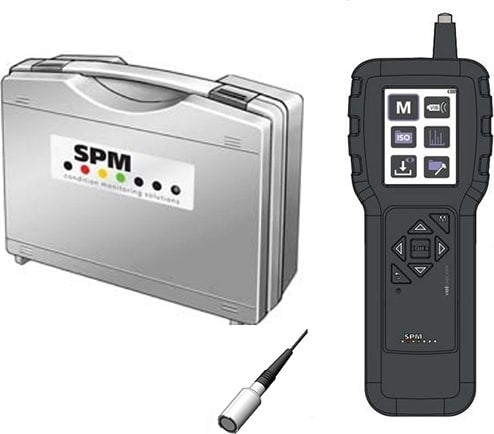

VC200T VibChecker Set
|
VibChecker is an instrument for fast and easy measurement of machine condition in preventive maintenance. It is based on the recommendations of ISO2372 and ISO10816 standards for broad band measurements of vibration. These standards make the assumption that limited information, obtained easily and at a low cost, is often as useful as a detailed analysis using expensive equipment and elaborate techniques.
The instrument measures either with a built-in probe (VC200) or with an external transducer. It is push button controlled and basic measurement data are entered manually. Evaluated measuring results are indicated by green-yellow-red symbols, and a time signal and its FFT spectrum are produced for easy pattern recognition. Measurement results can also be transferred to a file for further processing, e.g. in Microsoft Excel.
Machine vibration is the cause of many problems in industrial equipment. When integrated in your normal maintenance activities, periodic vibration measurement with VibChecker will go a long way to help keep your equipment operational. The Instrument provides early detection of problems such as imbalance, misalignment, looseness, and gear mesh. Suited to both new and experienced users, VibChecker covers the basic vibration monitoring needs in predictive maintenance.
VibChecker combines ease of use with cost effectiveness and durability. Designed for quick and accurate on-site vibration checks, VibChecker makes a proactive approach to maintenance economically feasible for everyone. A practical and user-friendly complement to your maintenance toolbox, it is a reliable instrument for first-line assessment of vibration severity. Without specialized training, maintenance technicians can measure, analyze, and record vibration data.
Using a built-in or external transducer, VibChecker measures RMS vibration levels as units of velocity, displacement, and acceleration, as well as vibration severity according to ISO 2372/10816. With a 2.4" color screen and push-button operation, the instrument is designed for ease of use.
Rated IP65, VibChecker can be used under the environmental conditions encountered in most industries. The Vibchecker instrument can be used to effectively monitor vibration levels in most types of rotating machinery, such as electric motors, fans, and pumps, in a diversity of industrial environments.
SPM VC200T Specifications
| Frequency Range | 10 to 1000 Hz |
| Operating Temperature | 32 to 122°F (0 to 50C°) |
| Readings | RMS/peak/peak-to-peak |
| Power Supply | 2 x 1.5 V AA batteries, alcaline or rechargeable |
| Battery Life | > 20 hours of typical use |
| Spectrum | linear, 200 lines, Hanning window, Hz/cpm, optical zoom, markers |
| Display | graphic monochrome, 64x112 pixels, LED backlight |
| Material, Casing | ABS/PC |
| Input Connector | mini coax, for external transduce |
| Weight | 335 g (11.8 ounces) |
Contact us at (214) 238-0493 for full specifications.
