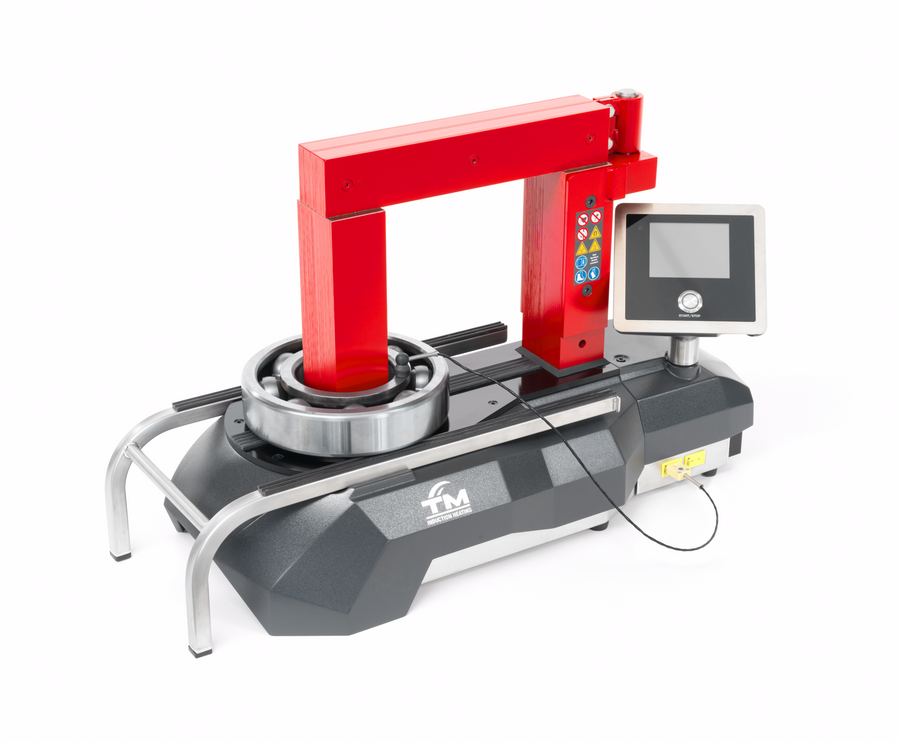

The SURETHERM 20X is the workshop workhorse in TM Induction Heating’s professional SURETHERM series, built for controlled heating of bearings, couplings, and other ring-shaped components. It offers a larger operation area and higher capacity, providing reliable, tension-free heating for parts up to 100 kg in daily workshop use.
Key functions include dual-sensor operation and ramp mode, enabling accurate control of heating processes to protect metallurgical structure. The industrial touchscreen interface supports fast setup, real-time monitoring, and heating graph display. All cycle data can be exported via USB, with firmware updates supported throughout the product’s life cycle.
Designed for production and maintenance environments, the SURETHERM 20X focuses on ergonomics and repeatability. Pivoting yokes reduce handling effort, and the stable layout supports consistent results when you need controlled heating across a wide range of medium-sized components.
The following yokes are included with SURETHERM 20X:
50 x 48. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 500 mm are included as well.
Specifications
Electricity
| Power rating | 3.7 kVA |
|---|
| Voltage | 110 – 230 V |
|---|
| Current max. | 16.0 A |
|---|
| Frequency | 50 – 60 Hz |
|---|
Workpiece Capacity
| Max. weight | 100.0 kg |
|---|
| Min. bore (Vertical) | ø15.0 mm |
|---|
| Min. bore (Horizontal) | 80.0 mm |
|---|
| Max. outer diameter (Vertical) | 416.0 mm |
|---|
| Max. outer diameter (Horizontal) | 500.0 mm |
|---|
| Max. workpiece width | 175.0 mm |
|---|
| Max. OD with extension blocks | 656.0 mm |
|---|
| Max. temperature | 240.0 °C |
|---|
Physical Specifications
| Weight (without yokes) | 40 kg |
|---|
| Dimensions (L × W × H) | 540 × 275 × 315 mm |
|---|
Controls
| Temperature range | 0–240°C (custom: 0–400°C) |
|---|
| Time range | 0–99 min |
|---|
| Dual temperature sensors | 0–240°C, ΔT 20–50°C |
|---|
| Time/Temperature Ramp | 0–99 min / 5–240°C |
|---|
| Power adjustment | 5–100% |
|---|
Touchscreen Display
| Display modes | Actual and set temperature, power, timer, heating graph |
|---|
| Dual sensor display | Temperature difference between inside and outside diameter |
|---|
| Languages supported | English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish |
|---|
| Error reporting | Shown in display |
|---|
Features & Connectivity
| Heating graph | Real-time display |
|---|
| Data export | USB 2.0 port for cycle download and firmware updates |
|---|
| Temperature hold | Yes |
|---|
| Demagnetizing | < 2A/cm |
|---|
| Magnetic sensors | 2 sensors (500 mm length, standard) |
|---|
| Thermal safety | Guard coil protection |
|---|
| Audio alert | Buzzer |
|---|
Warranty
| Coverage period | Max. 36 months (24+12) |
|---|
Included Accessories
| Standard yoke | 50 × 48 |
|---|
| Temperature sensors | 2 magnetic sensors, 500 mm length |
|---|
Shipping
| Carriers | UPS or FedEx for domestic orders; FedEx for international orders |
|---|
| Shipping cost | Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code. |
|---|
| Freight terms | FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock. |
|---|
| Hazardous items | Epoxy adhesives, batteries and paint markers cannot ship by air freight |
|---|
| International | Shipping fees do not include taxes, tariffs or duties |
|---|
