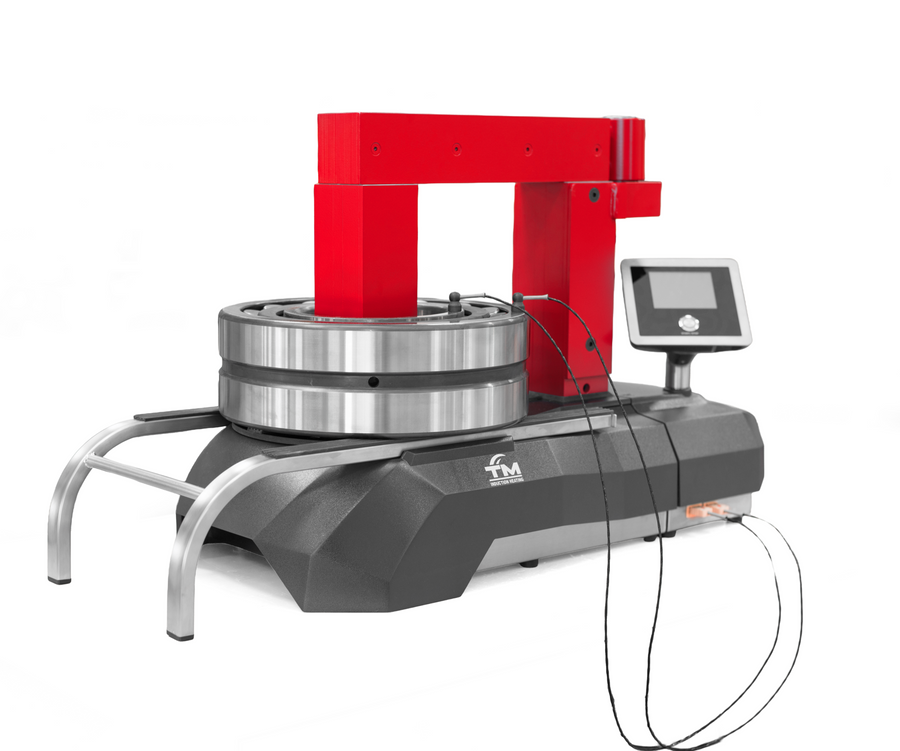

The SURETHERM 30X is the high-capacity bench model in TM Induction Heating’s professional SURETHERM series, built for controlled heating of larger bearings, gears, and similar ring-shaped parts. With more power and a larger working area, it delivers reliable, tension-free heating for parts up to 200 kg and supports bigger diameters for demanding jobs.
Key functions include dual-sensor heating and ramp mode for precise, repeatable thermal control. The unit features an industrial touchscreen interface for easy setup, real-time monitoring, and heating graph display. Data export via USB is available for documentation, and firmware updates are supported across the product’s life cycle.
Designed for heavy workshop use and production environments, the SURETHERM 30X combines capacity with efficient handling. Pivoting yokes and adjustable supports help position larger components with less effort, making it a practical choice when you need high performance, process control, and repeatability on larger workpieces.
The following yokes are included with SURETHERM 30X:
70 x 70. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.
Specifications
Electrical
| Power Rating | 8.0 kVA |
|---|
| Voltage | 400–575 V |
|---|
| Maximum Current | 20.0 A |
|---|
| Frequency | 50–60 Hz |
|---|
Workpiece Capacity
| Maximum Weight | 200 kg |
|---|
| Minimum Bore (Vertical) | ø30 mm |
|---|
| Minimum Bore (Horizontal) | 108 mm |
|---|
| Maximum OD (Vertical) | 500 mm |
|---|
| Maximum OD (Horizontal) | 600 mm |
|---|
| Maximum OD with Extension Blocks | 800 mm |
|---|
| Maximum Workpiece Width | 205 mm |
|---|
| Maximum Temperature | 240°C |
|---|
Physical Specifications
| Weight (without yokes) | 85 kg |
|---|
| Dimensions (L × W × H) | 695 × 330 × 375 mm |
|---|
Temperature & Time Controls
| Temperature Range | 0–240°C (custom: 0–400°C) |
|---|
| Time Range | 0–99 min |
|---|
| Dual Sensor Range | 0–240°C, ΔT 20–50°C |
|---|
| Ramp Control | 0–99 min / 5–240°C |
|---|
| Power Setting | 5–100% |
|---|
Touchscreen Display Features
| Real-Time Monitoring | Actual and set temperature, power, timer |
|---|
| Dual Sensor Display | Temperature difference between inside and outside diameter |
|---|
| Heating Graph | Displayed in real time |
|---|
| Languages Supported | English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish |
|---|
| Error Reporting | Shown in display |
|---|
Additional Features
| Data Export | USB 2.0 for graph download and firmware updates |
|---|
| Temperature Hold | Yes |
|---|
| Demagnetizing | < 2 A/cm |
|---|
| Magnetic Sensors | 2 sensors (1000 mm length, standard) |
|---|
| Thermal Safety Guard Coil | Yes |
|---|
| Sound Signal | Buzzer |
|---|
| Warranty | Up to 36 months (24+12) |
|---|
Included Accessories
| Standard Yoke | 70 × 70 mm |
|---|
| Temperature Sensors | 2 magnetic sensors, 1000 mm length |
|---|
