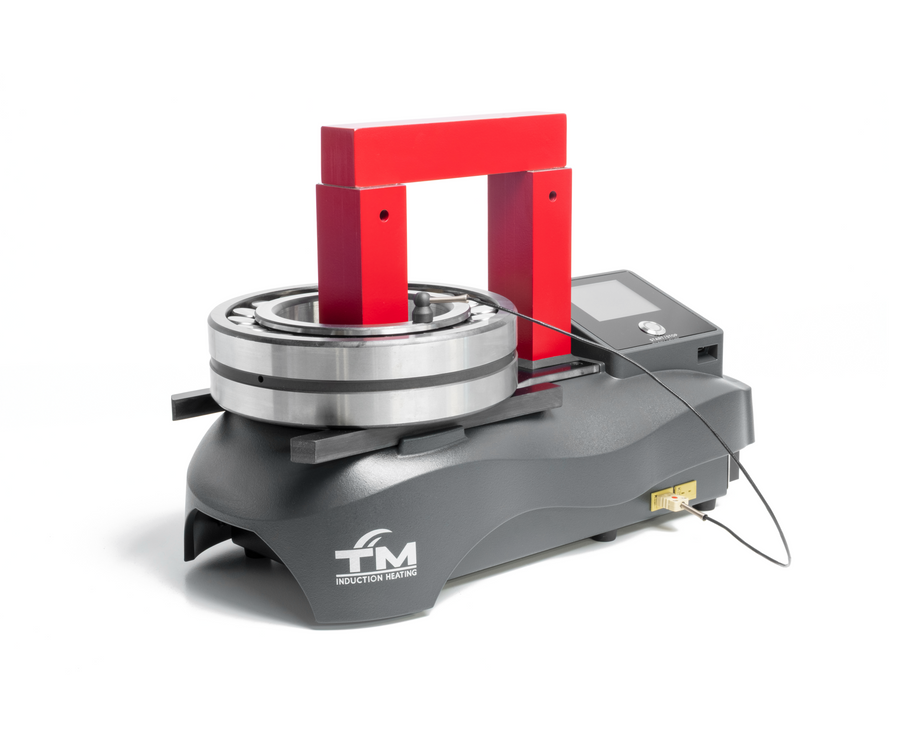

The SURETHERM 5X is the entry-level model in
TM Induction Heating’s professional SURETHERM series — built to deliver high-quality, controlled heating for bearings, gearwheels, and other ring-shaped components. Though compact, the 5X meets the same engineering standards as the rest of the SURETHERM range, ensuring reliable, tension-free heating for parts up to 25 kg.
Key functions include optional dual-sensor operation and ramp mode, allowing precise thermal control to protect metallurgical structure. The unit features an industrial touchscreen interface for easy setup, real-time monitoring, and heating graph display. All data can be exported via USB, and firmware updates are supported throughout the product’s life cycle.
Designed for production and maintenance environments, the SURETHERM 5X offers consistent performance with minimal operator effort. It combines the predictability and durability expected from TM Induction Heating systems - making it a practical and efficient choice where high performance and repeatability are required in
a compact footprint.
The following yokes are included with SURETHERM 5X:
14 x 14, 40 x 38. Additional yoke sizes are listed in our Datasheet. One magnetic temperature sensor is included as standard; a second sensor is available as an option.
Specifications
Electricity
| Power rating | 2.3 kVA |
|---|
| Voltage | 110–230 V |
|---|
| Current max. | 10.0 A |
|---|
| Frequency | 50–60 Hz |
|---|
Workpiece
| Max. weight | 25.0 kg |
|---|
| Min. bore (Vertical) | ø15.0 mm |
|---|
| Min. bore (Horizontal) | 66.0 mm |
|---|
| Max. OD (Vertical) | 330.0 mm |
|---|
| Max. OD (Horizontal) | 300.0 mm |
|---|
| Max. workpiece width | 120.0 mm |
|---|
| Max. OD with extension blocks | 480.0 mm |
|---|
| Max. temperature | 240.0 °C |
|---|
Physical
| Weight (without yokes) | 16 kg |
|---|
| Dimensions (L × W × H) | 405 × 205 × 275 mm |
|---|
Temperature Control
| Temperature range | 0–240°C (custom: 0–400°C) |
|---|
| Time range | 0–99 min |
|---|
| Dual-sensor operation | 0–240°C, ΔT 20–50°C |
|---|
| Time / Temperature Ramp | 0–99 min / 5–240°C |
|---|
| Set power | 5–100% |
|---|
Touchscreen Display
| Heating Temperature | Set and actual temperature and/or power |
|---|
| Heating time | Set and actual time and/or power |
|---|
| Dual-sensor display | Temperature, time, power, and ΔT |
|---|
| Ramp display | Temperature, time, and power |
|---|
| Languages | English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish |
|---|
| Error reporting | Shown in display |
|---|
Connectivity & Data
| Heating graph | Shown in display |
|---|
| External interface | USB 2.0 (download graphs, cycles, firmware updates) |
|---|
Safety & Features
| Sound signal | Buzzer |
|---|
| Temperature hold | Yes |
|---|
| Demagnetizing | < 2A/cm |
|---|
| Magnetic probe | One piece (standard) |
|---|
| Thermal safety guard coil | Yes |
|---|
Included Accessories
| Standard yokes | 14 × 14, 40 × 38 |
|---|
| Temperature sensor | One piece (standard) |
|---|
Warranty
| Coverage period | Max. 36 months (24+12) |
|---|
Shipping
| Carriers | UPS or FedEx for domestic orders; FedEx for international orders |
|---|
| Shipping cost | Calculated automatically at checkout for US orders. International orders require a complete ship-to address with postal code. |
|---|
| Freight terms | FOB shipping point, freight prepaid. Title passes to the buyer at the vendor's dock. |
|---|
| Hazardous items | Epoxy adhesives, batteries and paint markers cannot ship by air freight |
|---|
| International | Shipping fees do not include taxes, tariffs or duties |
|---|
Returns
| Return window | 7 calendar days from delivery. Contact us before returning any item. |
|---|
| Condition | New, unaltered and unused. Special and custom orders are not returnable. |
|---|
| Restocking fee | 15% on non-defective items that are not being exchanged |
|---|
| Full policy | Refund / Return Policy |
|---|
